Fasco® A165

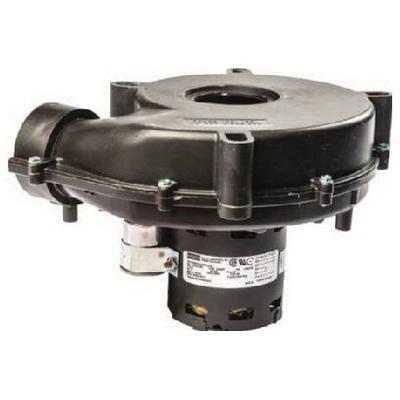

Fasco® A165 Inducer Blower Motor, 115 VAC, 0.7 A, 1/25 hp, 3450 rpm Speed, 1 ph -Phase, 60 Hz, Open Motor Enclosure
Brand: Fasco®
Item No: A165
Sign In for Availability
Description
Fasco® Inducer Blower Motor, 115 VAC, 0.7 A, 1/25 hp, 3450 rpm, 1 ph Phase, 60 Hz, Open Motor Enclosure, Clockwise Shaft End Rotation, 1 Speed, Ball Bearing, B Insulation Class, 40 deg C, 3.3 in Dia
Features
- Automatic thermal protection
Specifications
|
Amperage Rating |
0.7 A |
|
Bearing Type |
Ball |
|
Dimensions |
3.3 in Dia |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/25 hp |
|
Insulation Class |
B |
|
Motor Enclosure Type |
Open |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Rotation Type |
Clockwise Shaft End |
|
Speed Rating |
3450 rpm |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115 VAC |
