Fasco® D116

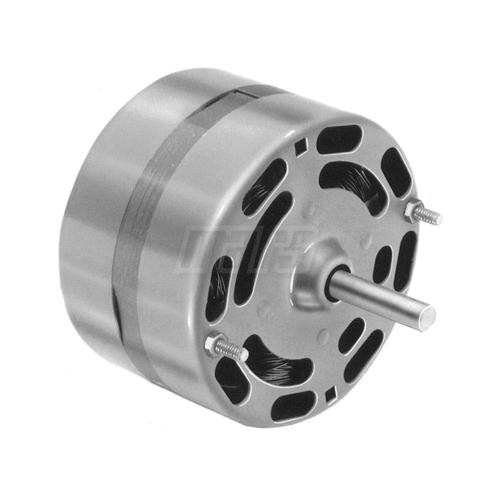

Fasco® D116 HVAC Motor, 115 VAC, 2.4 A, 1/15 hp, 1500 rpm Speed, 0.05 kW, 1 ph -Phase, 60 Hz, Insulation Class: A
Brand: Fasco®
Item No: D116
Sign In for Availability
Description
Fasco® HVAC Motor, 115 VAC, 2.4 A, 1/15 hp, 1500 rpm, 0.05 kW, 1 ph Phase, 60 Hz, Open Ventilated Motor Enclosure, 3/8 in Dia x 2-3/8 in L Shaft, Clockwise Rotation, 1 Speed, Flat Shaft Type, Sleeve Bearing, Stud Mounting, Air Over, A Insulation Class, 4 Poles, 1 Service Factor, Across the Line Starting Method, 40 deg C, 4.4 in Dia
Specifications
|
Amperage Rating |
2.4 A |
|
Bearing Type |
Sleeve |
|
Dimensions |
4.4 in Dia |
|
Duty Type |
Air Over |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/15 hp |
|
Insulation Class |
A |
|
Motor Enclosure Type |
Open Ventilated |
|
Mounting Type |
Stud |
|
Number of Poles |
4 |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
0.05 kW |
|
Rotation Type |
Clockwise |
|
Service Factor |
1 |
|
Shaft Size |
3/8 in Dia x 2-3/8 in L |
|
Shaft Type |
Flat |
|
Speed Rating |
1500 rpm |
|
Starting Method |
Across the Line |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115 VAC |
