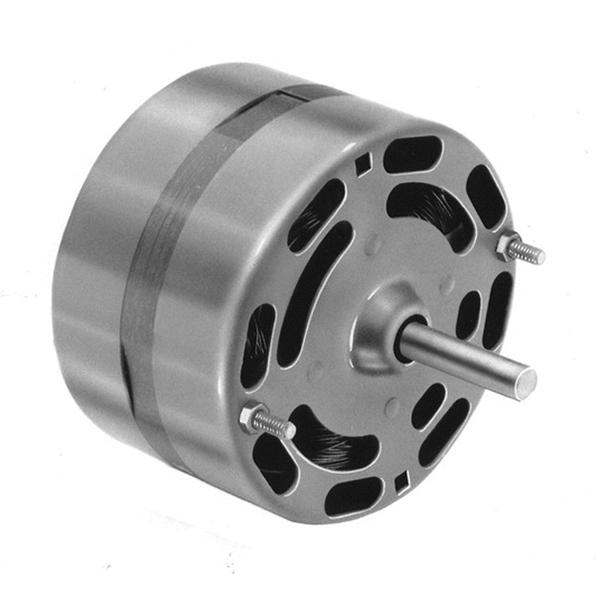

Fasco® D118
Fasco® 56C34D2106 D118 Motor, 115 VAC, 2.4 to 1.4 A, 1/15 to 1/30 hp, 1500 rpm Speed, 0.05 kW, 1 ph -Phase, 60 Hz
Brand: Fasco®
Item No: D118
Sign In for Availability
Description
Fasco® Motor, Model: 56C34D2106, 115 VAC, 2.4 to 1.4 A, 1/15 to 1/30 hp, 1500 rpm, 0.05 kW, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 3/8 in Dia x 2-3/8 in L Shaft, Clockwise Rotation, 2 Speed, Flat Shaft Type, Sleeve Bearing, Cradle Base Mounting, Air Over, A Insulation Class, 4 Poles, 1.15 Service Factor, Across the Line Starting Method, Steel, 40 deg C, 4.4 in Dia x 3 in L
Features
- Automatic thermal protection
Specifications
|
Amperage Rating |
2.4 to 1.4 A |
|
Bearing Type |
Sleeve |
|
Dimensions |
4.4 in Dia x 3 in L |
|
Duty Type |
Air Over |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/15 to 1/30 hp |
|
Insulation Class |
A |
|
Material |
Steel |
|
Model |
56C34D2106 |
|
Motor Enclosure Type |
Open Air Over |
|
Mounting Type |
Cradle Base |
|
Number of Poles |
4 |
|
Number of Speeds |
2 |
|
Phase |
1 ph |
|
Power Rating |
0.05 kW |
|
Rotation Type |
Clockwise |
|
Service Factor |
1.15 |
|
Shaft Size |
3/8 in Dia x 2-3/8 in L |
|
Shaft Type |
Flat |
|
Speed Rating |
1500 rpm |
|
Starting Method |
Across the Line |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115 VAC |
