Fasco® D703

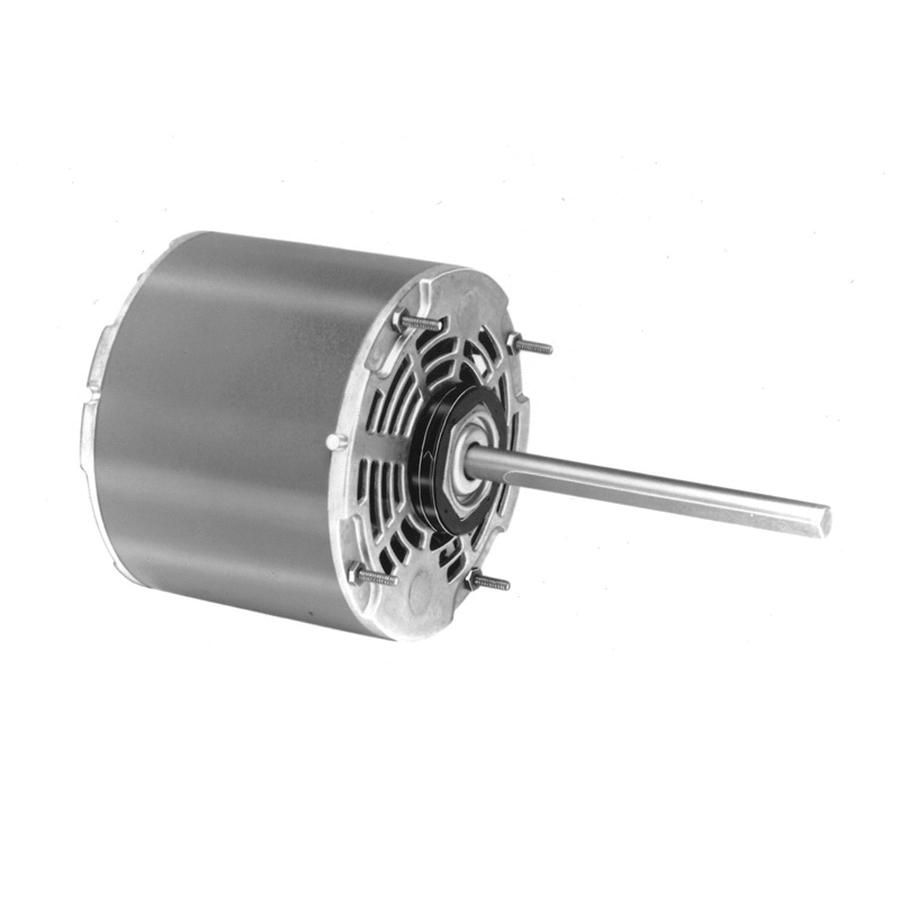

Fasco® D703 Blower Motor, 208 to 230 VAC, 4/2.7/2 A, 1/2 hp, 1/3 hp, 1/4 hp, 1075 rpm Speed, 0.37 kW, 1 ph -Phase, 60 Hz
Brand: Fasco®
Item No: D703
Sign In for Availability
Description
Fasco® Blower Motor, 208 to 230 VAC, 4/2.7/2 A, 1/2 hp, 1/3 hp, 1/4 hp, 1075 rpm, 0.37 kW, 1 ph Phase, 60 Hz, Open Ventilated Motor Enclosure, 48 Frame, 1/2 in Dia x 6 in L Shaft, Reversible Rotation, 3 Speed, Double Flat Shaft Type, Sleeve Bearing, Resilient Ring Mounting, Direct Drive, Continuous, B Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, Rolled Steel, 5.6 in Dia x 5 in L
Features
- Automatic thermal protection
- General replacement direct-drive blower motors that feature an open ventilated design, thermal protection, shielded ball bearings
Specifications
|
Amperage Rating |
4/2.7/2 A |
|
Bearing Type |
Sleeve |
|
Dimensions |
5.6 in Dia x 5 in L |
|
Drive Type |
Direct |
|
Duty Type |
Continuous |
|
Frame Size |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/2 hp, 1/3 hp, 1/4 hp |
|
Insulation Class |
B |
|
Material |
Rolled Steel |
|
Motor Enclosure Type |
Open Ventilated |
|
Mounting Type |
Resilient Ring |
|
Number of Poles |
6 |
|
Number of Speeds |
3 |
|
Phase |
1 ph |
|
Power Rating |
0.37 kW |
|
Rotation Type |
Reversible |
|
Service Factor |
1 |
|
Shaft Size |
1/2 in Dia x 6 in L |
|
Shaft Type |
Double Flat |
|
Speed Rating |
1075 rpm |
|
Starting Method |
Across the Line |
|
Voltage Rating |
208 to 230 VAC |
