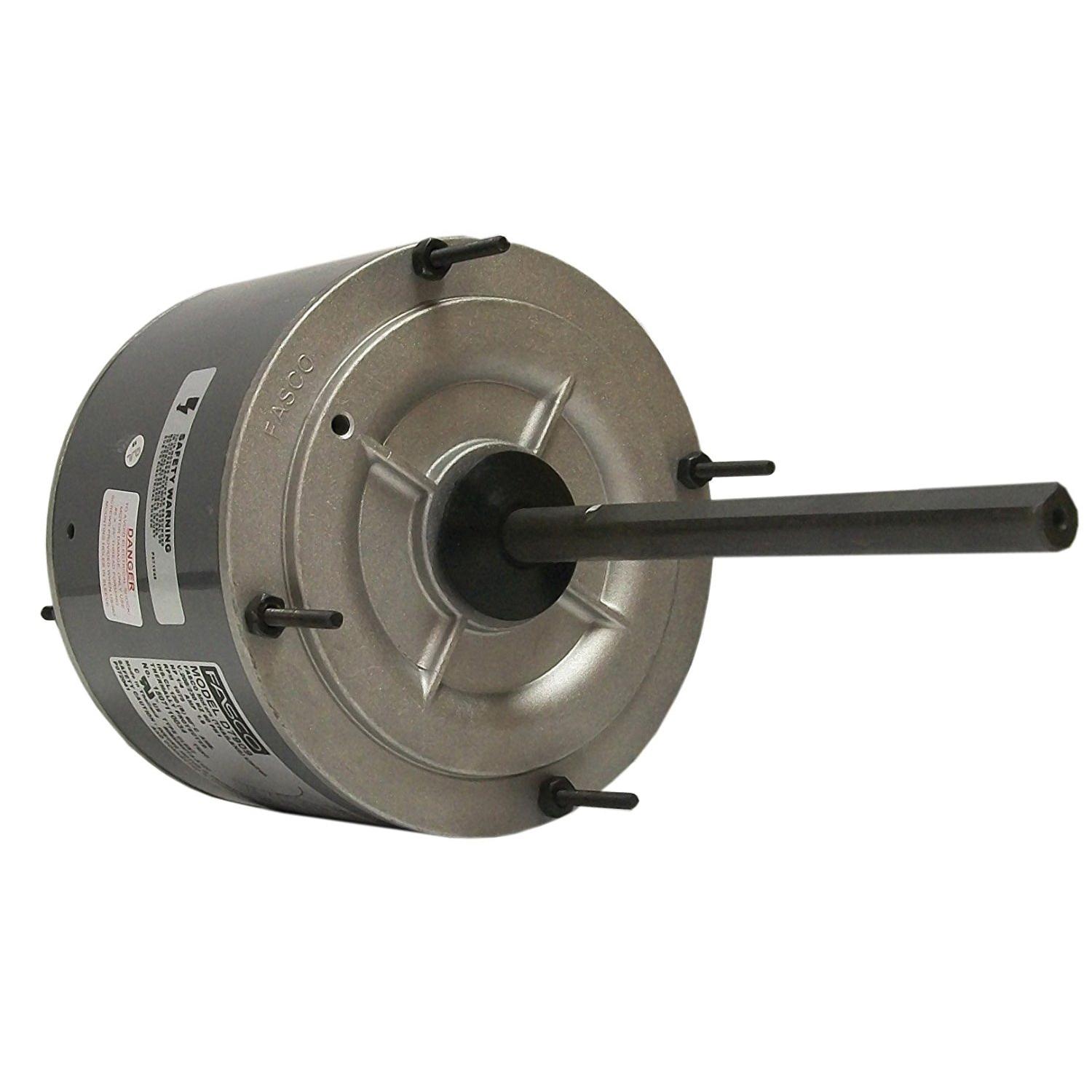

Fasco® D7909
Fasco® D7909 Condenser Fan Motor, 208 to 230 V, 1.8 A, 1/4 hp, 1075 rpm Speed, 0.19 kW, 1 ph -Phase, 60 Hz, 48 Frame
Brand: Fasco®
Item No: D7909
Sign In for Availability
Description
Fasco® Condenser Fan Motor, 208 to 230 V, 1.8 A, 1/4 hp, 1075 rpm, 0.19 kW, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible Rotation, 1 Speed, Ball Bearing, Through-Bolt Mounting, B Insulation Class, Continuous, 1 Service Factor, 6 Poles, Rolled Steel, 60 deg C, 5-5/8 in Dia x 4 in L
Features
- All angle mount
- Extended tie rods both ends
- Flat end bells both ends
- Four drilled and tapped holes in shell
Specifications
|
Amperage Rating |
1.8 A |
|
Bearing Type |
Ball |
|
Dimensions |
5-5/8 in Dia x 4 in L |
|
Duty Type |
Continuous |
|
Frame Size |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/4 hp |
|
Insulation Class |
B |
|
Material |
Rolled Steel |
|
Motor Enclosure Type |
Totally Enclosed Air Over |
|
Mounting Type |
Through-Bolt |
|
Number of Poles |
6 |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
0.19 kW |
|
Rotation Type |
Reversible |
|
Service Factor |
1 |
|
Shaft Size |
1/2 in Dia x 6-1/2 in L |
|
Speed Rating |
1075 rpm |
|
Temperature Rating |
60 deg C |
|
Voltage Rating |
208 to 230 V |
