Fasco® D909

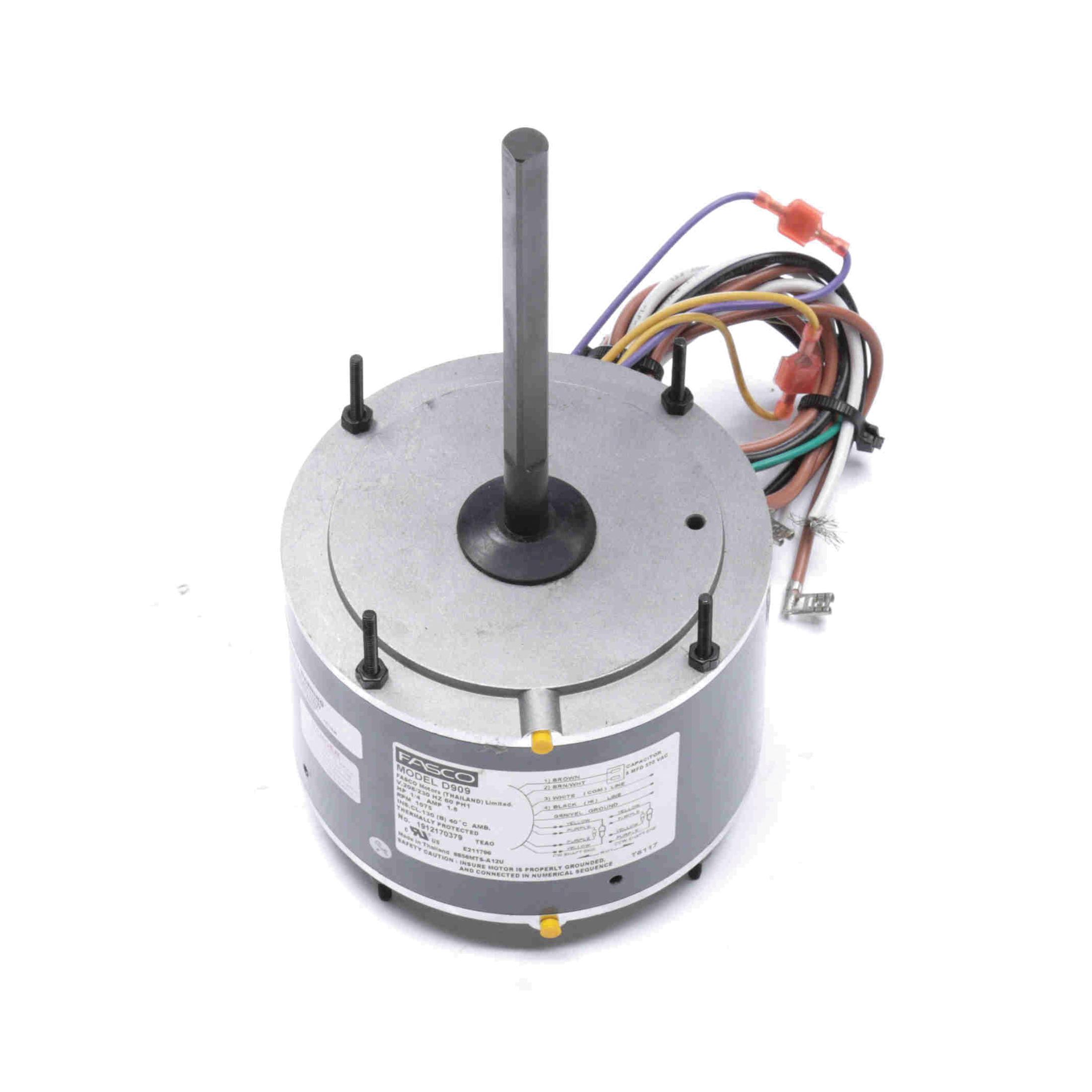

Fasco® D909 Condenser Fan Motor, 1/4 hp, 208 to 230 V, 60 Hz, 1 ph -Phase, 48 Frame, 1075 rpm Speed
Brand: Fasco®
Item No: D909
Sign In for Availability
Description
Fasco® Condenser Fan Motor, 1/4 hp, 208 to 230 V, 1.8 A, 60 Hz, 1 ph, 1075 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, 48 Frame, 0.5 in Dia x 6.5 in L Shaft, 1, Sleeve, Extended Studs Mount, 40 deg C Ambient, Class B, 5.59 in OAW, 11.01 in OAD, 27 in Leads, 5.6 in Dia Frame, 6 Pole
Features
- Thermally protected
- Totally enclosed air over
- Sleeve bearing
- Extended studs shaft end and lead end, mounting holes in shell, belly band-mount
- Permanent split capacitor (PSC), capacitor required - 5 MFD -370 V
Specifications
|
Additional Information |
27 in Leads, 5.6 in Dia Frame, 6 Pole |
|
Amperage Rating |
1.8 A |
|
Bearing Type |
Sleeve |
|
Enclosure Type |
Totally Enclosed Air Over |
|
Frame |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/4 hp |
|
Insulation Class |
Class B |
|
Mounting Type |
Extended Studs |
|
Number of Speeds |
1 |
|
Overall Depth |
11.01 in |
|
Overall Width |
5.59 in |
|
Phase |
1 ph |
|
Service Factor |
1 |
|
Shaft Size |
0.5 in Dia x 6.5 in L |
|
Speed Rating |
1075 rpm |
|
Temperature Rating |
40 deg C Ambient |
|
Voltage Rating |
208 to 230 V |
