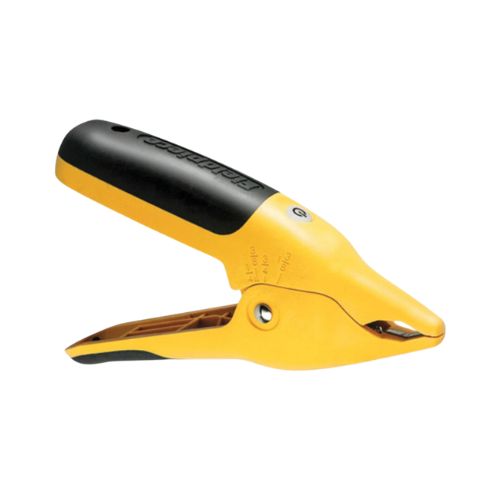

Fieldpiece JL3PC

Description

The JL3PC pipe temperature wireless clamps feature patent pending Rapid Rail™ Sensor Technology that uses electrically conductive pipe to complete the circuit so readings stabilize in 3 s and are not affected by ambient air. One beep with a slow green blinking light indicates a closed circuit. If the pipe is corroded the circuit will be open and will not read temperature. The clamp will indicate the open loop with a double beep and rapid blinking light. Simply clean the pipe to enable the circuit to be closed and allow fast readings with +/- 1 deg F accuracy.

Fieldpiece Pipe Clamp Probe, 1 % Accuracy, 32 to 122 deg F, 1000 ft Wire Length, Thermocouple Sensor, -50 to 257 deg F Measuring, 3 s Response, Plastic, Additional Information: Battery Power Source

Features

• Powerful 1000 ft wireless range w/no transmitter required
• Needle nose to fit in tight spaces
• Stabilizes in 3 s with +/- 1 deg F accuracy
• Water-resistant
• Communicates with Job Link® App and Wireless Manifolds (SM380V/SM480V)
• LED and beep indicate accurate connection
• Ambient air conditions do not affect measurements
• Narrow jaw connects in tight spaces
• Connect pipe clamps directly to the Job Link® app or connect directly to the new SM380V or SM480V refrigerant manifolds, there is no JL2 transmitter required for either applications
