Fluke® 5278833

Description

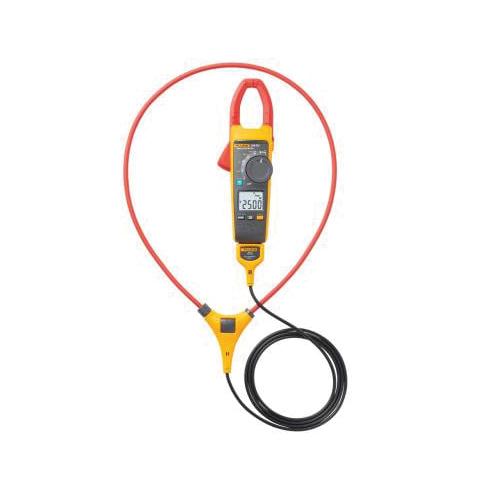

The Fluke 376 FC true RMS clamp meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity. The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it.

Fluke® True RMS Clamp Meter, Model: 376 FC, 1000 VAC/VDC, 2500 A, 60 kOhm Resistance, 5 to 500 Hz, Backlit Display, 2% +/-5 Digits at 10 to 100 Hz, 2.5% +/-5 Digits at 100 to 500 Hz AC Current Accuracy, 1% +/-5 Digits Voltage Accuracy, Cat III 1000 V, Cat IV 600 V Safety Rating, -10 to 50 deg C Operating, 1000 uF Capacitance, 1% +/-4 Digits Capacitance Accuracy, 2% +/-5 Digits at 10 to 100 Hz, 2.5% +/-5 Digits at 100 to 500 Hz DC Current Accuracy, <=90%, <=75%, <=45% Relative Non-Condensing Humidity, 1% +/-5 Digits Resistance Accuracy, 0.1 A Resolution, 0.5% +/-5 Digits Frequency Accuracy, -40 to 60 deg C, 249 mm L x 85 mm W x 45 mm H

Features

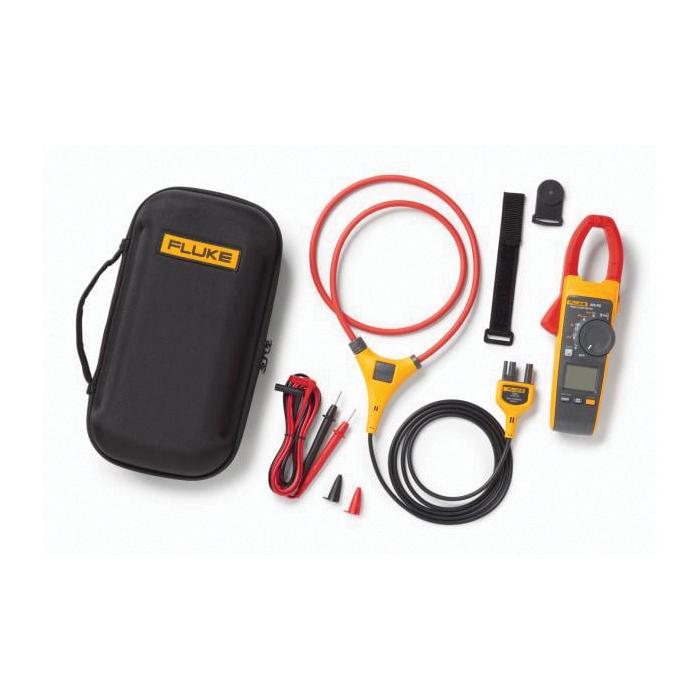

• Measures AC/DC current with included 18 or 36 in iFlex current probe
• VFD low pass filter for accurate measurements of non-linear signals

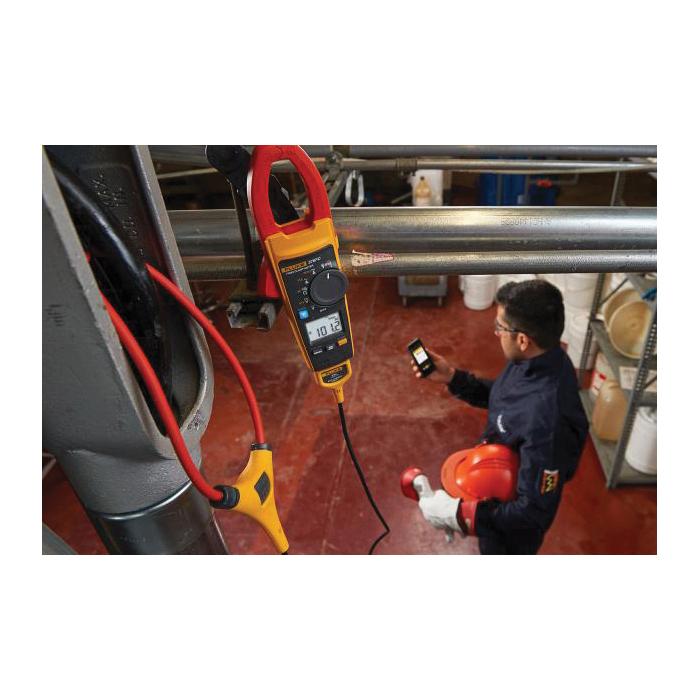

• Remotely log, trend and monitor to pinpoint intermittent faults
• Inrush measurement to filter out noise and capture starting current
• Min/max, average and inrush recording to capture variations automatically
• Work safely and conveniently
