Fluke® 3620217

Description

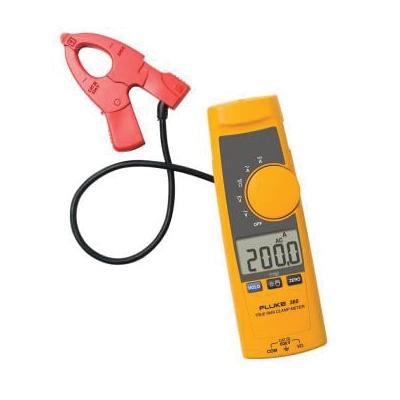

Fluke® Detachable Jaw True RMS AC/DC Clamp Meter, Model: 365, 600 VAC/VDC, 200 A, 600 to 6000 Ohm Resistance, Jaw Capacity: 18 mm, Backlit Display, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits AC, 1% +/-5 Digits DC Voltage Accuracy, Cat III 600 V Safety Rating, -10 to 50 deg C Operating, 2% +/-5 Digits DC Current Accuracy, <=90%, <=75%, <=45% Relative Non-Condensing Humidity, 1% +/-5 Digits Resistance Accuracy, 0.1 A Resolution, -40 to 60 deg C, 225 m L x 65 mm W x 46 mm H

Features

• 200 A AC and DC current measurement with detachable jaw
• Detachable jaw makes accessing wires and viewing the display easier
• Built-in flashlight/torch allows for easy illumination and identification of wires

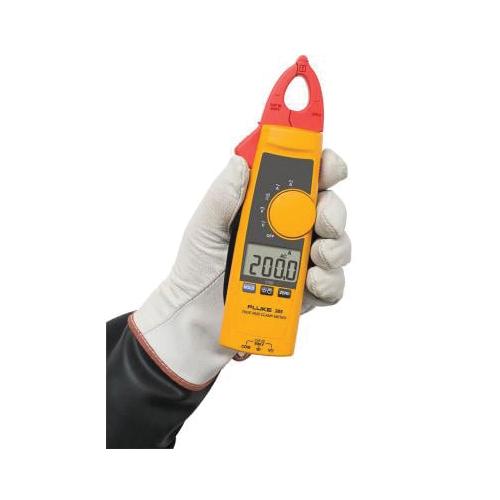

• Compact design fits in your hand and can be used while wearing protective equipment
• State of the art signal processing allows for use in noisy electrical environments while providing stable readings
• Large, easy-to-read, backlight display automatically sets the correct measurement range so you do not need to change switch positions while taking a measurement

Specifications

Documentation
