Fluke® 5160585

Description

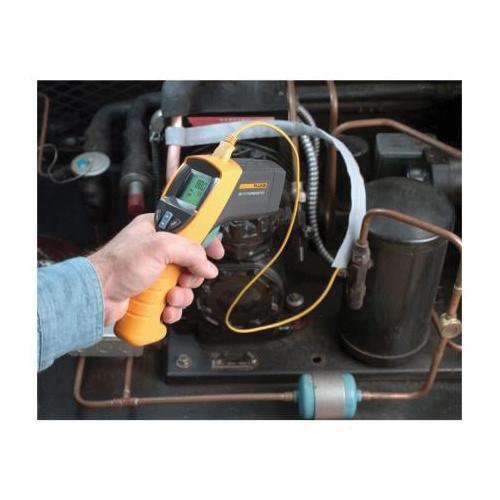

The Fluke 561 IR contact thermometer combines the temperature measurement functions that industrial, electrical and HVAC/R professionals need in one tool. It is an IR thermometer for non-contact measurements, with K-type thermocouple capability for contact temperature measurement. It's fast, efficient and easy-to-use, saving you valuable time and effort. Use the 561 IR capabilities to scan large areas or small objects quickly and efficiently, without having to shut down equipment. Measure hot, moving, electrically energized and hard-to-reach objects instantly. Check motors, insulation, breakers, radiant heating, pipes, corroded connections, and wires. Plus, scan ducts and other hard to reach objects from the floor and leave your ladder in the truck. You can also use the Fluke 561's handy flexible pipe probe (included) to take super-heat or internal temperatures. Or plug in any industry standard type K mini connector thermocouple probe to take those measurements and preserve your investment in thermocouples you already own.

Fluke® Infrared and Contact Thermometer, 561 Series, 0 to 50 deg C, 0.1 deg C Resolution, LCD Display, Alkaline, Ni-Cd Battery, 500 ms Response, -40 to 550 deg C Measuring, Measurement Type: Celsius, Fahrenheit, 10 to 90% Relative Non-Condensing Humidity at <30 deg C, 12 hr Battery Life

Features

• Contact and non-contact IR thermometer for measuring up close or at a distance, without a ladder
• Works with all standard mini connector Type-K thermocouples
• Provides single point laser sighting
• Allows easy emissivity adjustment for measuring pipes and other shiny surfaces more accurately
• Fabric hook and loop fastener pipe probe for superheat, sub cooling and other contact and ambient measurements
• Provides min/max/dif functions to help you quickly identify problems
