Fluke® 4695814

Description

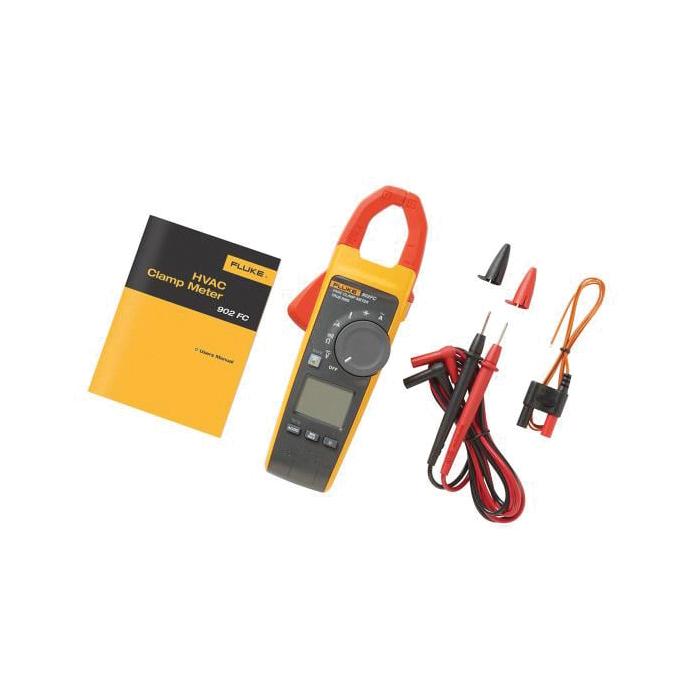

The Fluke 902 FC clamp meter with Fluke connect wireless connectivity, can help HVAC technicians improve productivity in the field. The rugged dual-rated CAT III 600 V, CAT IV 300 V meter equips you to perform many essential HVAC system measurements - micro amps for testing pilot light sensors, resistance up to 60 kOhm, AC current and AC/DC voltage, capacitance and contact temperature, all with just one tool. Plus its small form factor makes it easy to hang on to and navigate in tight work spaces.

Fluke® True RMS HVAC Clamp Meter, Model: 902 FC, 600 VAC/VDC, 600 A, 60 kOhm Resistance, Backlit Display, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits Voltage Accuracy, Cat III 1000 V, Cat IV 600 V Safety Rating, -10 to 50 deg C Operating, 1000 uF Capacitance, 1% +/-4 Digits Capacitance Accuracy, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz DC Current Accuracy, <=90%, <=75%, <=45% Relative Non-Condensing Humidity, 1% +/-5 Digits Resistance Accuracy, 0.1 A Resolution, 1% +/-8 Digits Temperature Accuracy, -40 to 60 deg C, 230 mm L x 83.7 mm W x 45.4 mm H

Features

• Ergonomic design fits in your hand and can be used while wearing personal protective equipment
• Large, easy-to-read backlit display improves readings in low light settings
• Connects to your smartphone via Fluke connect so you can read measurements at a safer distance
• Offers true RMS voltage and current measurements to accurately measure non-linear signals
• Offers min/max recording to capture variations automatically
• Runs on two AA alkaline batteries

Specifications

Documentation
