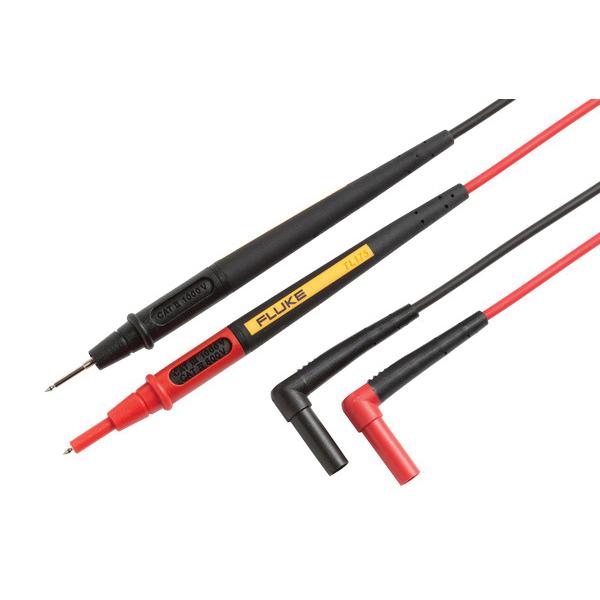

Fluke® TL175

Description

The Fluke® TL175 TwistGuard test leads offer adjustable length test tips for use in different measurement environments. The TwistGuard adjustable tips enhance safety and versatility length. The WearGuard indicator shows damage to leads and provides heavy duty strain relief to withstand over 30000 bends.

Fluke® Test Lead, 10 A, 600/1000 V, Shrouded Banana Plug Connection, -4 to 131 deg F, Black/Red

Features

• Patented TwistGuard extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements
• New WearGuard lead wire wear indication; each test lead is covered by two layers of silicone insulation; inner contrasting color is exposed when the leads are nicked, scuffed or otherwise damaged and in need of replacement
• Double insulated silicone leads, TL175 test leads withstand high temperatures and remain flexible in cold temperatures
• Extra-heavy-duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure
• Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs
• Ratings - cat II 1000 V, cat III 1000 V, cat IV 600 V, 10 A maximum, pollution degree 2
• Probes always show correct category rating for tip being used
• Includes removable 4 mm lantern tips that thread onto the lead tip
