Glasfloss® M1318242

Description

The Glasfloss Z-Line® Series MR-13 air filter shall be of the extended surface pleated media type. The media incorporates 100% synthetic fibers that are electrostatically charged. The filter fibers are thermally bonded and manufactured in an engineered gradient structure. An expanded metal reinforcement shall be laminated to the air exit side of the media by a thermo setting adhesive to maintain continuity of the radial pleats. The expanded metal shall be galvanized to resist rust and corrosion. The media shall be pleated in a tapered radial configuration. The pleated cartridge shall be bonded to the peripheral interior of the outer frame. A heavy-duty moisture-resistant beverage board shall be utilized for an encasing frame. The frame shall be internally laminated to the pleated cartridge apexes. Z-Line® MR-13 Series filters shall be classified under UL900 and shall be rated to withstand temperatures up to 180 deg F. Z-Line® MR-13 Series filters shall be rated MERV 13 when tested in accordance with the ANSI/ASHRAE 52.2 test standard.

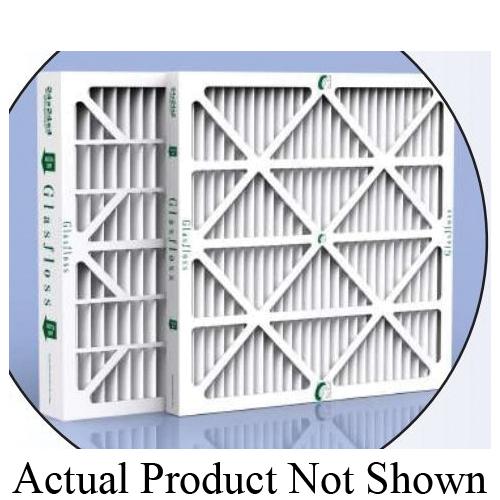

Glasfloss® Z-Line® Pleated Air Filter, Media Material: Synthetic Fiber, 18 in W, 24 in H, 2 in Depth, MERV: 13, Media Area: 13.28 sq-ft, Rated Velocity: 500 fpm, Initial Resistance: 0.39 in-WG, Final Resistance: 1 in-WG, Actual Size: 23-1/2 in H x 17-1/2 in W x 1-3/4 in D, 180 deg F, Domestic/Import: Domestic, Double Wall Die Cut Beverage Board Frame

Features

• Electrostatically charged 100% synthetic media
• Heavy-duty moisture-resistant construction
• Standard size 4 in incorporate media separators
• Eco friendly
