Henry® 925

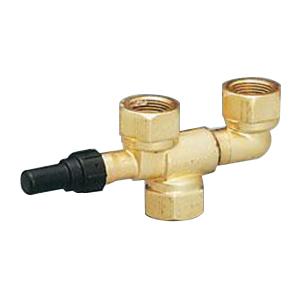

Henry® 925 Shut-Off Valve, 1/2 in, FNPT, Brass, 0 to 46 bar
Brand: Henry®
Item No: 925
Sign In for Availability
Description
Henry® Shut-Off Valve, 1/2 in Nominal, FNPT Connection, 0 to 46 bar, 3, Brass Body, Plated Steel Stem, -29 to 149 deg C, 64 mm H
Features
- Allows for dual changeover safety device system in accordance with ISO 5149
- Forged brass and hermetically welded
- Proven robust design
- The seal cap is made from molded plastic
- 70 mm outlet pitch (C/L)
- PTFE/graphite based material stem seal packing
- For HCFC and HFC refrigerants along with their associated oils
Specifications
|
Body Material |
Brass |
|
Connection Type |
FNPT |
|
Dimensions |
64 mm H |
|
Nominal Size |
1/2 in |
|
Number of Ports/Ways |
3 |
|
Pressure Rating |
0 to 46 bar |
|
Stem Material |
Plated Steel |
|
Temperature Rating |
-29 to 149 deg C |
