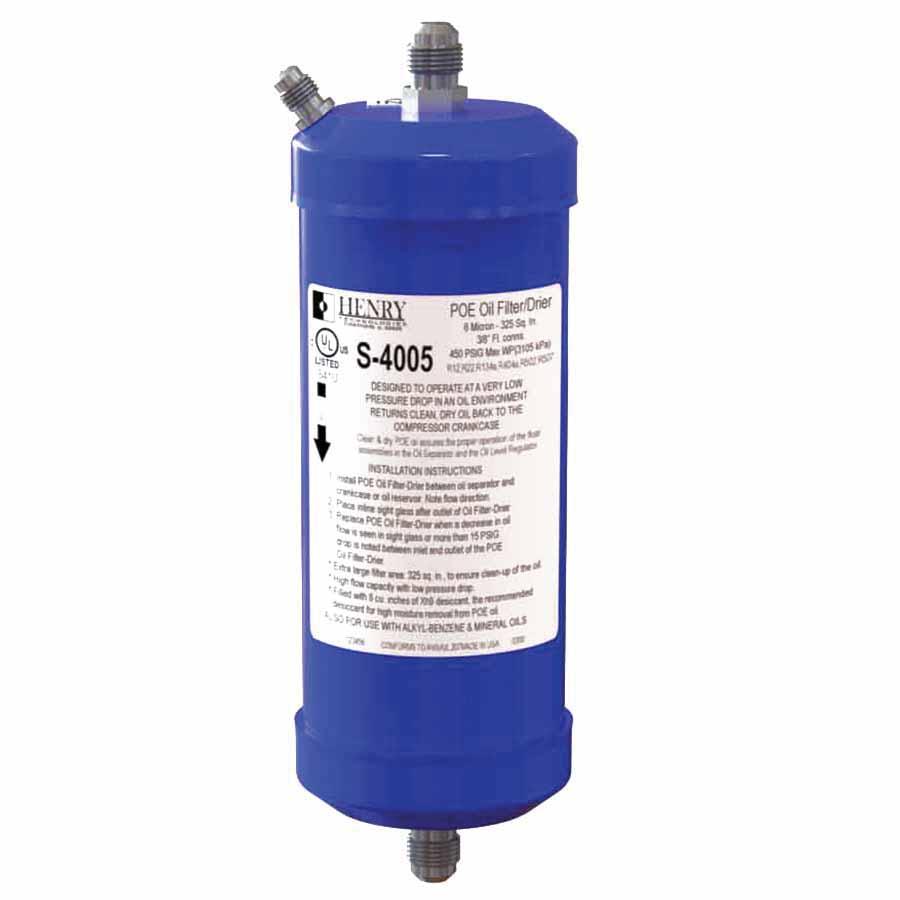

Henry® S-4005

Description

Henry Technologies' Oil Filter-Driers can be used in both Low and High Pressure Oil Management Systems. The unique drying features of the S-4005 model are particularly suited for systems using POE oil. This type of oil is more hydroscopic than mineral oil. This means that POE oil absorbs moisture at a much higher rate. Moisture in a refrigeration system can produce problems and/or harmful conditions. One S-4005 model can be fitted in the oil return line between the Oil Separator and Oil Reservoir, instead of fitting one Oil Strainer per Oil Level Regulator. These models will also remove more debris than traditional oil strainers. Henry Technologies' Oil Filters and Oil Filter-Driers are suitable for use with HFC and HCFC refrigerants and their associated oils, as well as other industrial fluids non-corrosive to steel and copper.

Henry® Oil Filter Dryer, SAE Flared, 450 psi, 6 um, 465 sq-in Surface Area, Carbon Steel, 14 to 212 deg F, 3 in Dia x 9.8 in H

Features

• High flow capacity with low pressure drop
• Particle retention down to 6 um
• High level of drying with 8 in XH-9 desiccant
• Suitable replacement for individual oil strainers on oil return line

Specifications

Documentation
