Henry® S-5202

Description

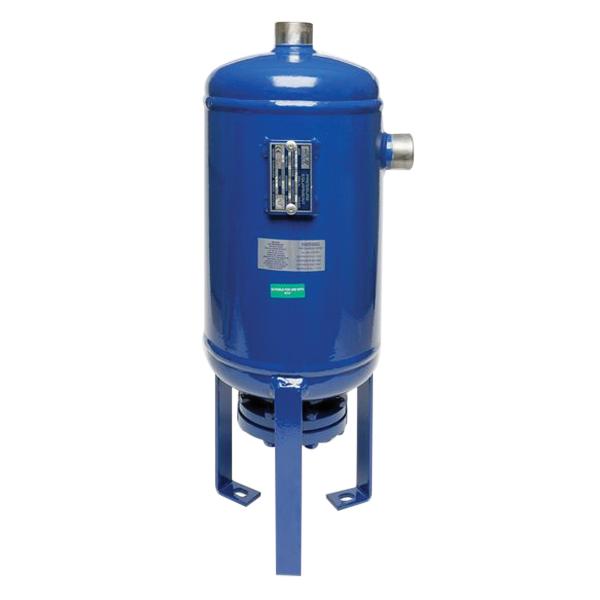

Henry® Helical Oil Separator, ODS, 31 bar, 25 oz Pre Charge Oil, R-134A, R-22, R-404A, R-507, 39.2 cfm CFM Rating, Composition: Steel, -10 to 130 deg C, Copper-Plated, 8 in Dia x 24 in H

Features

• Low pressure drop throughout the entire range of velocities found in a refrigeration system
• No clogging elements because of too much oil in the system
• No oil blow-out at start up from oil left in a coalescing element
• Oil can be drained from the separator when necessary through a 1/8 in NPT fitting at the bottom of the separator
• The helical oil separator features a centrifugal flow path achieving approximately 99. X% efficiency of oil separation with low pressure drop
• Testing by an independent laboratory found that only 0.006% oil by volume was being discharged into the system after leaving a helical oil separator
