Honeywell C7250A1001/U

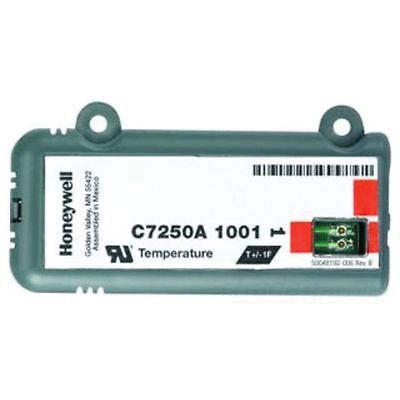

Honeywell C7250A1001/U Mixed Air Sensor, -40 to 150 deg F
Brand: Honeywell
Item No: C7250A1001
Sign In for Availability
Description
The C7250 mixed air sensor is designed for use as a 20k input to a controller for mixed air temperature in rooftop packaged air conditioning equipment. A separate controller such as the Jade economizer system (model W7220) provides power and communications for the C7250 mixed air sensor.
Honeywell Mixed Air Sensor, -40 to 150 deg F, 11 to 89% RH Non-Condensing Humidity Rating, 2-Pin Header-Pin Style or 2-Pin Card Edge Removable Terminal Blocks Connection, Gray, 4-1/4 in H x 2.17 in W x 0.81 in D, For Use With: W7220 Economizer Controller
Features
- Mounted in any position where it is exposed to freely circulating air
- Output rating 20 kohm at 77 deg F
Specifications
|
Color |
Gray |
|
Connection Type |
2-Pin Header-Pin Style or 2-Pin Card Edge Removable Terminal Blocks |
|
Dimensions |
4-1/4 in H x 2.17 in W x 0.81 in D |
|
Humidity Rating |
11 to 89% RH Non-Condensing |
|
Suitable For Use With |
W7220 Economizer Controller |
|
Temperature Rating |
-40 to 150 deg F |
