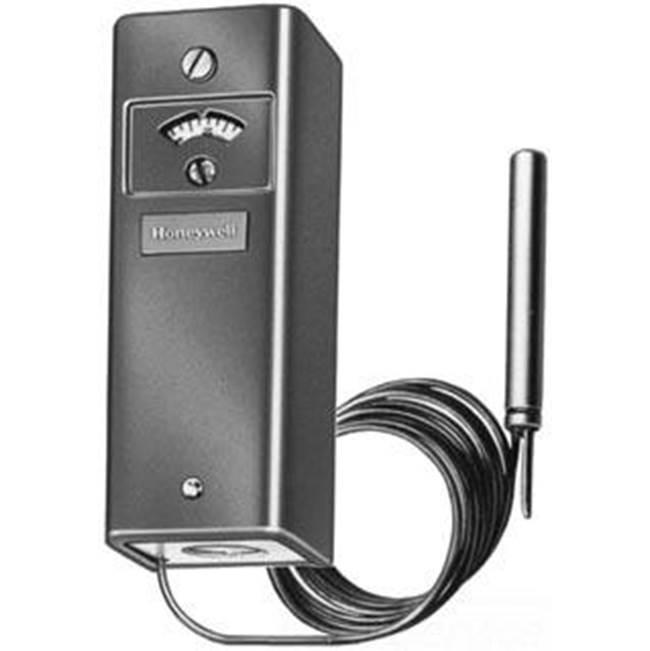

Honeywell Home L4008A1015
Honeywell Home L4008A1015 Aquastat Controller, SPST, Horizontal, Vertical Mounting, Gray, 100 to 240 deg F
Brand: Honeywell Home
Item No: L4008A1015
Sign In for Availability
Description
For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.
Honeywell Home Aquastat Controller, 8/5.1/48/30.6 A, 120/240 V, 3/8 x 2-7/8 in Bulb Size, 66 in Capillary Length, SPST Contact Configuration, Copper Sensing Element, SPST Switching Action, Horizontal, Vertical Mounting, Gray, 100 to 240 deg F, 5 to 30 deg F Differential Temperature
Features
- Remote temperature sensing element detects and responds rapidly to temperature changes
- Totally enclosed SPST Micro Switch™ snap acting switch
- Visible control point scale and external adjustment screw permit easy setting
- Horizontal and/or vertical mounting of the remote element into boiler, tank
Specifications
|
Additional Information |
-100 to 240 deg F, 3/4 in Conduit, 66 in L Capillary, Screw Terminal, Horizontal/Vertical Immersion, High/Low Limit |
|
Amperage Rating |
8/5.1/48/30.6 A |
|
Bulb Size |
3/8 x 2-7/8 in |
|
Capillary Length |
66 in |
|
Color |
Gray |
|
Contact Configuration |
SPST |
|
Differential Temperature |
5 to 30 deg F |
|
Dimensions |
2-7/8 in L x 3-3/8 in Dia |
|
Mounting Type |
Horizontal, Vertical |
|
Sensing Element |
Copper |
|
Switching Action |
SPST |
|
Temperature Rating |
100 to 240 deg F |
|
Voltage Rating |
120/240 V |
