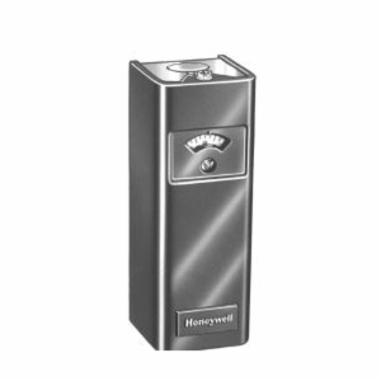

Honeywell L4080B1352/U

Description

Honeywell Aquastat Control, 0.25 A at 0.25- 12 VDC, 8 A at 120 VAC, 4 A at 240 VAC Full Load, 48 A at 120 VAC, 24 A at 240 VAC Locked Rotor Contact Rating, 100 to 200 deg F, 40 deg F Maximum Above Set-Point or 265 deg F Lower, 8 deg F Differential Temperature

Features

• High limit aqua stat controller has adjustable set point
• A factory set stop is available on L4080 to prevent setting the control at too high a temperature
• Liquid fill in sensing element expands as the boiler temperature rises
• At the set point temperature, a diaphragm-actuated snap switch breaks the power supply to the burner primary control
• Includes siphon loop
• 1-1/2 - 3 in insulation depth
• 3 in insertion depth
• Mount using 1/4 in NPT female threads or surface-mount through base of case
• Breaks contact on temperature rise to set point
• Immersion type controllers for hydronic heating systems that turn off the burner whenever the boiler water temperature rises to the set point
• Vertical-mounting
