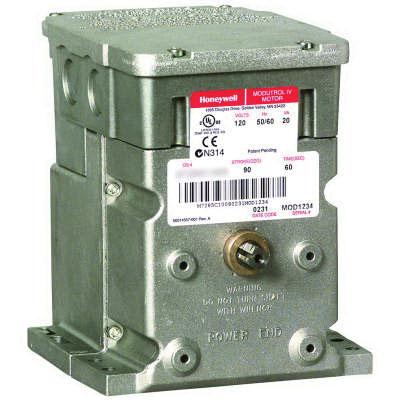

Honeywell M9174C1025/U

Description

Honeywell Modutrol IV Electric Motor, Series: 90, 120 VAC, 50/60 Hz, 12 V-A VA, Quick Connect Terminal Electrical Connection, 30 - 60 sec Timing, Die-Cast Aluminum Housing, 75 in-lb Torque, -40 to 150 deg F Ambient, 5-1/2 in W x 6-7/16 in H x 8-3/4 in D, Foot Mounting

Features

• 91 proportioning Series 90 control
• Dual-ended motor shaft, non-spring return
• 2 auxiliary switches
• Replaces M934A,D, M941, M944A,C,D, M945A,D,F, M954, M965 and M975 motors
• Integral junction box provides NEMA 3 weather protection
• Integral spring return returns motor to normal position when power is interrupted
• Motor and circuitry operate from 24 VAC models available with factory installed transformer or a field added internal transformer
• Adapter bracket for matching shaft height of older motors is available
• Integral auxiliary switches are available factory-mounted or can be field added
• Spring return motors can operate valve linkages from power end or auxiliary end shafts for normally closed or normally open valve applications
• All models have auxiliary switch cams
• Fixed torque throughout the entire voltage range
• Motors are designed for either normally open or normally closed valves and dampers
• Field addable interface modules can be-mounted in junction box to upgrade the motor to Series 70 (electronic) control
• 10mm L x 3/8 in Dia Shaft
• Internal auxiliary switch ratings - 7.2 A at 120 VAC A full load, 43.2 A at 120 VAC A locked rotor, 3.6 A at 240 VAC A full load, 21.6 A at 240 VAC A locked rotor
• Clockwise (as viewed from power end) (normally closed) shaft rotation (upon control signal increase)
• Adjustable: 90 - 160 deg, asymmetrical stroke setting
