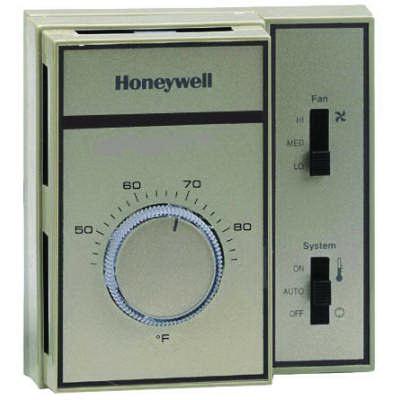

Honeywell T6069A4010/U

Description

Honeywell Thermostat, 120 - 277 VAC, 50/60 Hz, Manual, HEAT-OFF-COOL (System), HI-MED-LOW (Fan) Switch Position, 8 A Full Load, 48 A Locked Rotor, 13 A Resistive at 120 VAC, 4.4 A Full Load, 26.4 A Locked Rotor, 7.5 A Resistive at 208 VAC, 4 A Full Load, 24 A Locked Rotor, 6.5 A Resistive at 240 VAC, 3.3 A Full Load, 19.8 A Locked Rotor, 5.5 A Resistive at 277 VAC Contact Rating, 2 deg F Differential Temperature, 44 - 86 deg F Temperature Settings, Vertical Mounting, 4-1/2 in W x 4-5/8 in H x 1-7/8 in D, Tan

Features

• T6069 thermostats control line voltage valves and/or blower motors on fan coil units in manual changeover heating/cooling systems
• The thermostats feature a one-system and fan speed switch
• Thermostat, system and fan control switches combined in 1 deluxe-styled unit
• Manual 3-speed fan control on most models
• Operates 1 or 2 valves
• Has cycled or constant fan control
• Receptacles, small, containing gas, 2.1 hazmat information
• Mounts on 2 x 4 in single or double ganged vertically oriented outlet box
