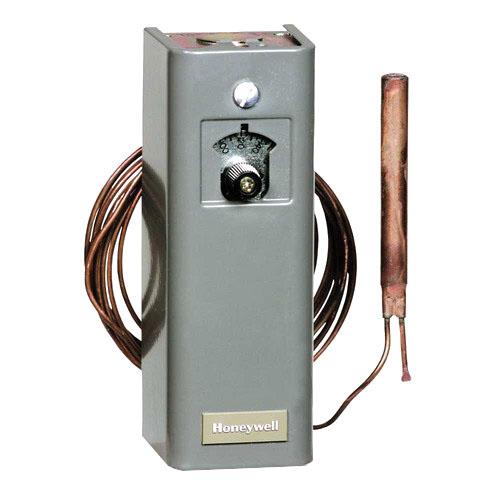

Honeywell T675A1516/U

Description

Honeywell Temperature Control, Tradeline Model, 120/240/277 VAC, Configuration: SPDT, 5 ft Capillary Length, Sensing Element: Copper Bulb, 50/60 Hz, 8 A Full Load, 48 A Locked Rotor at 120 VAC, 5.1 A Full Load, 30.6 A Locked Rotor at 240 VAC, 4.2 A Full Load, 25.2 A Locked Rotor at 277 VAC, 125 V-A at 120/240/277 VAC Pilot Duty Contact, 1 -Switch, 1 deg F Differential, Temperature Settings: 0 - 100 deg F, 2 in L, 5-5/8 in H, 2-5/8 in W, 125 deg F Operating

Features

• Controller can be-mounted in any position
• Ambient temperature compensation provides good temperature control
• Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems
• Fast response models (available for use in return air duct) operate approximately four times faster than standard models
• UN 1993, flammable liquid, N.O.S. (contains Isopropanol), 3, III
• Includes 107324A duct bulb holder
