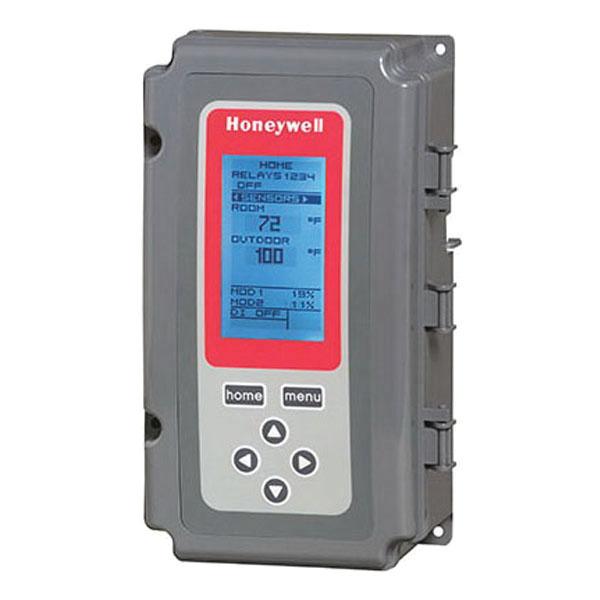

Honeywell T775B2040/U

Description

The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.

Honeywell Electronic Remote Temperature Control, Series: T775B, 24/240 VAC, Switching Action: SPDT, 50/60 Hz, 1 - 150 deg F Differential, Temperature Settings: -40 to 120 deg F, 4-13/32 in L, 8-5/32 in H, 2-15/16 in W

Features

• Save time on installations with the easy-to-use graphical interface, large display and the intuitive programming
• Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
• Protect equipment from freezing or over heating on models with the modulating high or low limit control option
• Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
• Configure models with reset in a few easy steps
• Control floating actuators with floating outputs on select models
• Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
• Sensor 50021579-001 included with non-NEMA 4X models
• Sensor T775-SENS-WR included with NEMA-4X models

Specifications
