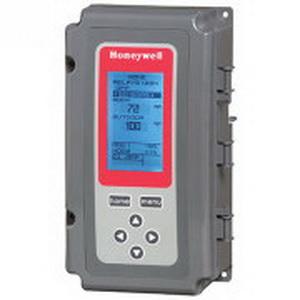

Honeywell T775U2006/U

Description

Honeywell Remote Temperature Control, T775U Model, 24/120/240 VAC, 1097 ohm PTC at 77 deg F Sensor, Configuration: (2) SPDT, +/-1 deg F at 77 deg F Accuracy, 50/60 Hz, 10 A at 24 VAC Resistive, 1/2 hp at 120 VAC, 9.8 A Full Load, 58.8 A Locked Rotor at 125 V-A Pilot Duty, 1/2 hp at 240 VAC, 4.9 A Full Load, 29.4 A Locked Rotor at 125 V-A Pilot Duty Contact, 1 - 150 deg F Differential, Temperature Settings: -40 to 248 deg F, 4-13/32 in L, 8-5/32 in H, 2-15/16 in W, -40 to 125 deg F at 50 Hz, -40 to 140 deg F at 60 Hz Ambient

Features

• T775 electronic remote temperature controller, is the next generation in commercial/agricultural control
• Universal model (T775U) can control pressure, humidity, or any variable analog input
• Save time on installations with the easy-to-use graphical interface, large display and the intuitive programming
• Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
• Provide very fast or very fast response times on modulating outputs by adjusting the integral and derivative times (PI or PID)
• Configure models with reset in a few easy steps
• Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
• 1 - 150 deg F throttling range
• Up to 1000 ft maximum distance to sensor
• 2-sensor inputs
