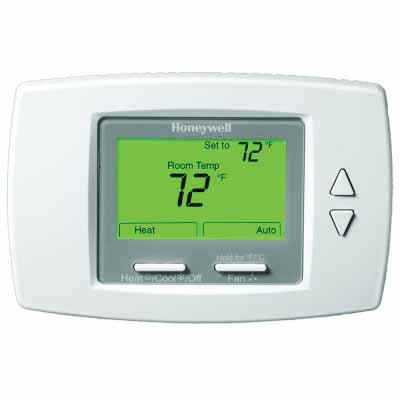

Honeywell TB6575A1000/U
Honeywell TB6575A1000/U SuitePRO Thermostat, 120 - 240 VAC, 1 Heat/1 Cool
Brand: Honeywell
Item No: TB6575A1000
Sign In for Availability
Description
Honeywell SuitePRO Thermostat, 120 - 240 VAC, 50/60 Hz, Auto/Manual, 1 Heat/1 Cool Stages, OFF-HEAT-COOL-AUTO (System), HI-MED-LOW-AUTO-OFF (Fan) Switch Position, (5) Relay Switch, 6 A at 120 VAC, 3 A at 240 VAC Fan Rating, 1 A at 120 - 240 VAC Relay Rating Contact Rating, LCD Display, 50 - 90 deg F Temperature Settings, 5 - 95% RH Non-Condensing Humidity Rating, Horizontal/Vertical Mounting, 5-13/16 in L x 3-13/16 in H x 1-1/8 in D, Premier White
Features
- Provide line/low voltage on/off control for various fan-coil units
- Simple, intuitive user interface and ease of installation
- Attractive modern styling ideal for hotels and condos
- Digital display of ambient temperature, setpoint, mode icons when cooling or heating relays operate, when energy savings mode is active and fan status
- Four buttons allow manual control of system operation, fan speed and temperature setpoint adjustment
- VersaSpeed fan ramp algorithm automatically adjusts low, medium, high fan speed
- Optional freeze protection feature that turns on heat, if necessary
- Activity sensing algorithm sets back thermostat to economy mode
- Auto fan rest option sets back fan to auto mode
- Energy savings mode - external energy savings input from dry contact such as time switch, occupancy sensor or hotel cardkey overrides comfort setpoint with selectable setback heating or cooling setpoint
- Energy savings input configurable as a normally open or normally closed dry contact
- Proportional plus integral (P+I) control algorithm for precision temperature regulation
- Selectable deg C or deg F, adjustable deadband, in auto changeover mode, for heat and cool control
- Adjustable maximum heat/minimum cool setpoints
- Installer setup mode allows changes of operating parameters
- EEPROM permanently retains user settings, Including setpoints, during power loss (no batteries required)
- Capability to display temperature sensor failure for easier troubleshooting
- Optional remote temperature sensor and remote pipe sensor, back light
- 2 x 4 in single gang electrical box horizontal mounting, 2 x 4 or 4 x 4 in junction box
- Plastic (cover, sub-base and optional adaptor plate) enclosure
Specifications
|
Changeover |
Auto/Manual |
|
Color |
Premier White |
|
Contact Rating |
6 A at 120 VAC, 3 A at 240 VAC Fan Rating, 1 A at 120 - 240 VAC Relay Rating |
|
Dimensions |
5-13/16 in L x 3-13/16 in H x 1-1/8 in D |
|
Display Type |
LCD |
|
Frequency Rating |
50/60 Hz |
|
Humidity Rating |
5 - 95% RH Non-Condensing |
|
Mounting Type |
Horizontal/Vertical |
|
Stages |
1 Heat/1 Cool |
|
Switch Position |
OFF-HEAT-COOL-AUTO (System), HI-MED-LOW-AUTO-OFF (Fan) |
|
Switch Type |
(5) Relay |
|
Temperature Settings |
50 - 90 deg F |
|
Voltage Rating |
120 - 240 VAC |
