Honeywell V4046C1054

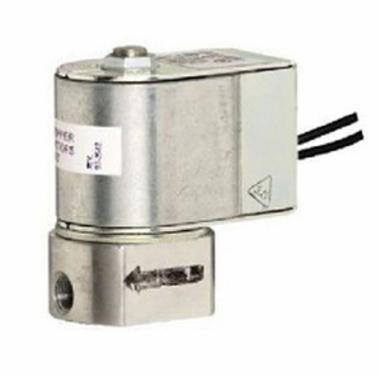

Honeywell V4046C1054 Solenoid Pilot Gas Valve, 3/8 in, NPT, 10 psi, Aluminum
Brand: Honeywell
Item No: V4046C1054
Sign In for Availability
Description
Honeywell Solenoid Pilot Gas Valve, 3/8 in Nominal, NPT Connection, 10 psi, Aluminum, (2) 36 in Lead Wires, 1/2 in Conduit Bushing Electrical Connection, 110/120 VAC, 50/60 Hz, 67 cfh Nominal Capacity, 8 W Power Consumption, Air, LP Gas, Manufactured, Natural Gas Fuel, Directly in Pipe, On Support Bracket Mounting, -40 to 125 deg F, 3-1/4 in H x 2-5/8 in W x 1-5/8 in D
Features
- Provide on off control of natural, LP and manufactured gases to pilot burners in industrial and commercial applications
- Magnetically operated, normally closed
- Provide instantaneous action when energized
- On power failure, valve closes in 1 s maximum
- Use in any position, directly in pipe line or on support bracket-mounting
- Replace the solenoid coil without removing the valve body from the piping connections
- Straight through valve pattern
Specifications
|
Connection Type |
NPT |
|
Dimensions |
3-1/4 in H x 2-5/8 in W x 1-5/8 in D |
|
Electrical Connection |
(2) 36 in Lead Wires, 1/2 in Conduit Bushing |
|
Frequency Rating |
50/60 Hz |
|
Fuel Type |
Air, LP Gas, Manufactured, Natural Gas |
|
Material |
Aluminum |
|
Mounting Type |
Directly in Pipe, On Support Bracket |
|
Nominal Capacity |
67 cfh |
|
Nominal Size |
3/8 in |
|
Power Consumption |
8 W |
|
Pressure Rating |
10 psi |
|
Temperature Rating |
-40 to 125 deg F |
|
Voltage Rating |
110/120 VAC |
