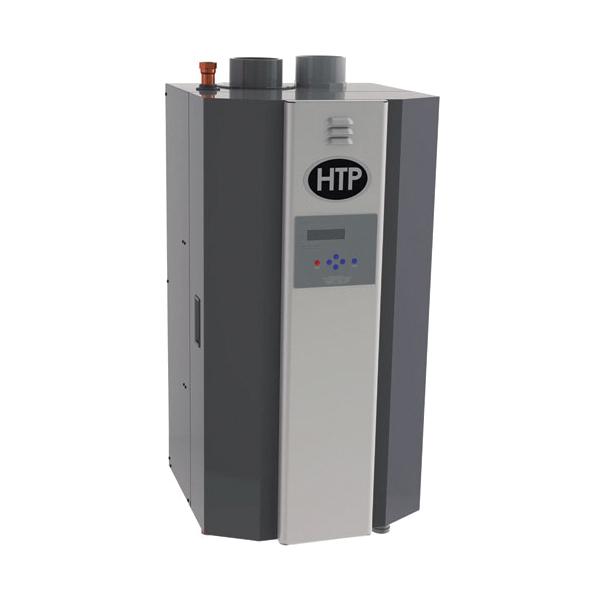

HTP EFT-285

Description

HTP Elite FT® High Efficiency Fire Tube Heating Boiler, Model: 285, 120 V, 6.3 A, 60 Hz, AFUE Rating: 95.1 %, 28500 to 285000 Btu/hr BTU, 6.1 gal Capacity, 17.9 gpm Flow Rate, 80 psi Pressure, 1 in NPTF x 1-1/2 in Copper Sweat Connection, LP, Natural Gas Fuel, Vent Type: Air Intake, Exhaust, Burner Type: Premixed Fuel Modulation/Stainless Steel Metal Fiber, DOE Heating Capacity: 262 mbh, Ignition System: Direct Electronic Spark, Flame Rectification, Direct Electronic Spark, Flame Rectification Ignition, Wall Hung Mount, Galvanneal Steel, Powder-Coated, 32 to 190 deg F, 32.6 in H x 20 in W x 20.6 in D, 10:1 Turndown Ratio, Category IV, LCD Display with LED Indicators/926 SIT Control, Power Vent Flue System, Sealed Combustion Direct Vent

Features

• Energy star rated - up to 95.1% AFUE operating efficiency
• Low NOx emission
• Stainless steel fire tube heat exchanger
• Outdoor reset lowers operating set point automatically
• Unbeatable combined vent length of up to 150 ft in 3 in PVC pipe
• Room air intake
• Down fire design, promotes self-cleaning of combustion system
• Increased thermal mass provides low pressure drop and eliminates short cycling
• Built-in condensate collection system
• Compatible with glycol based systems
• Cascade up to 8 boilers
