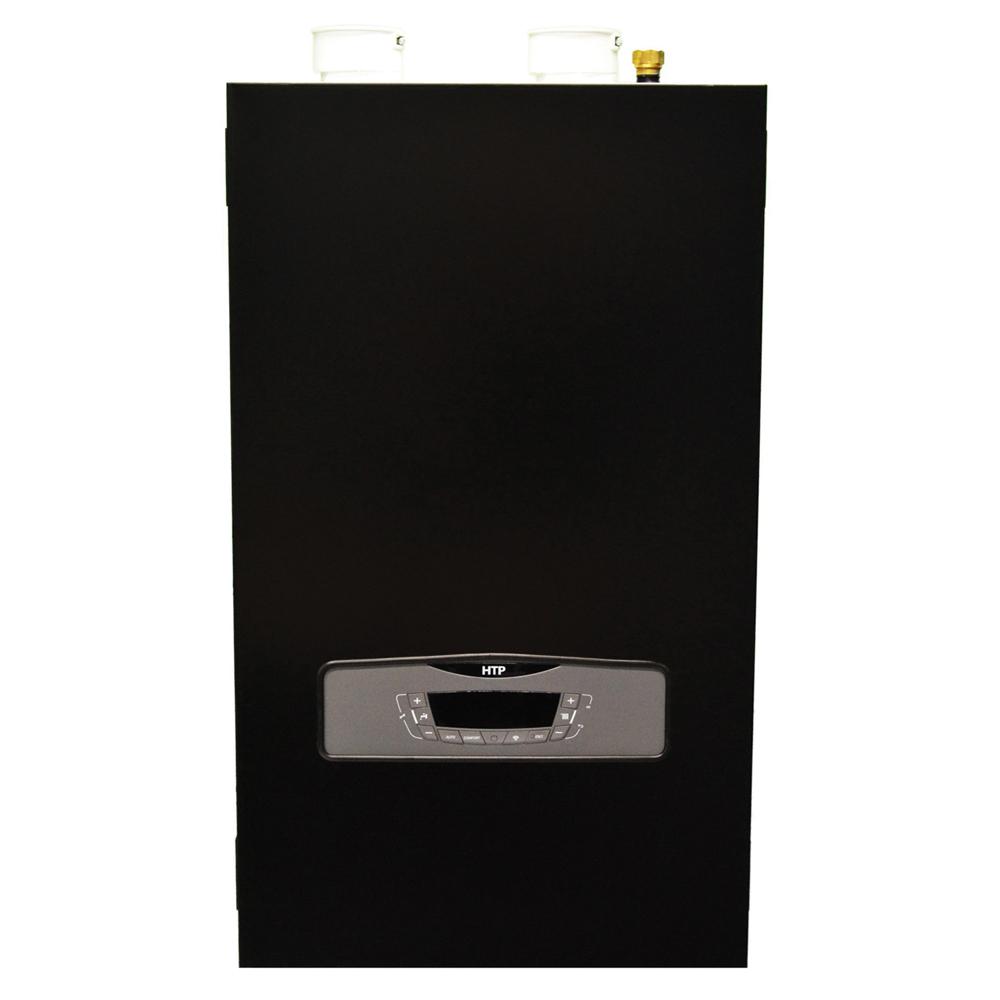

HTP EFTU-150WCN

Description

The Elite Fire Tube Ultra Boiler and Combi models were thoughtfully designed by our Italian Engineers to combine efficiency, dependability, and quality in one product. Packed with state-of-the-art technologies, smart connectivity, an easy-to-use interface, and whisper quiet operation, the Elite Fire Tube Ultra is made to perform and last.

HTP High-Efficient Fire Tube Combination Boiler Unit, Series: Elite, 120 V, 12 A, 60 Hz, 95 % AFUE, 15000 to 150000 Btu/hr, 2.1 gal Capacity, 30 psi, NPT Connection, Natural Gas Fuel, Direct, Power Vent, Premixed, Stainless Steel Burner, Direct Electronic Spark, Flame Rectification Ignition, Wall Mounting, Stainless Steel/Steel, Painted, 33 to 104 deg F, 19-3/4 in W x 18-1/2 in D x 38-1/4 in H, Domestic/Import: Domestic

Features

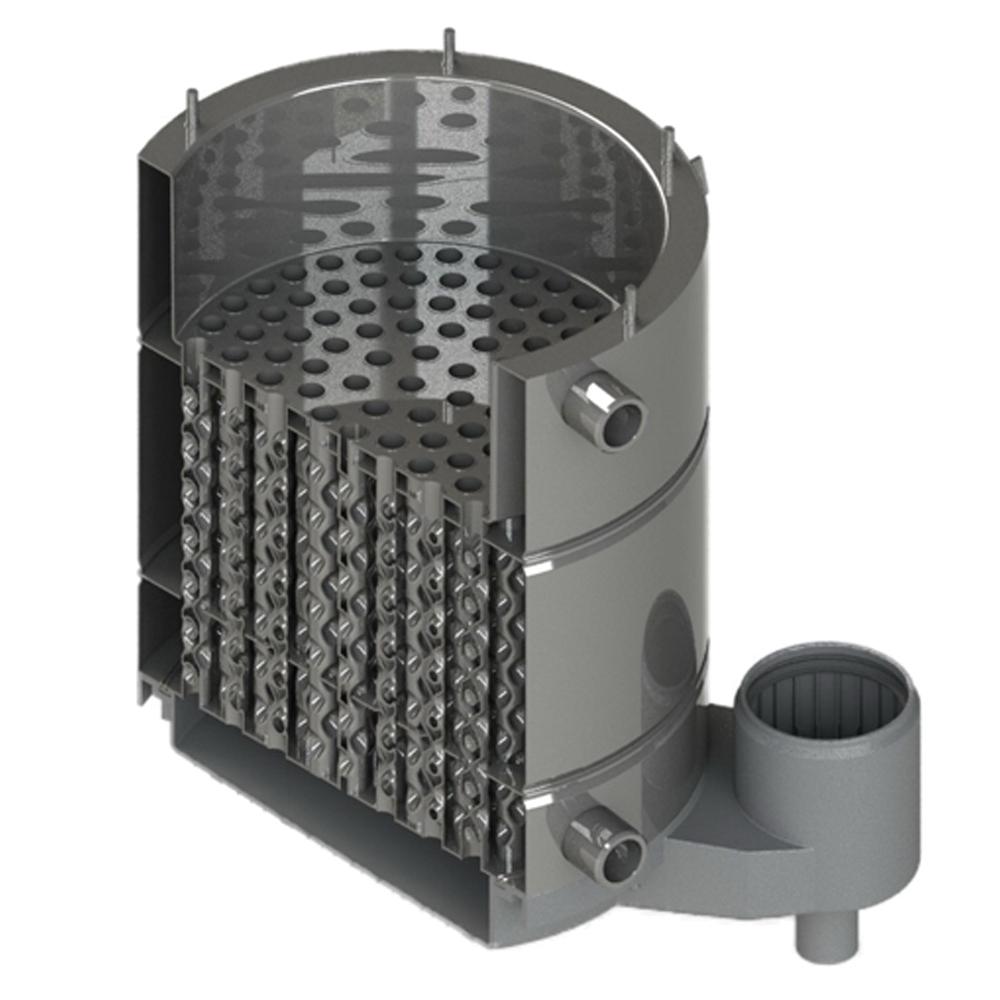

• Constructed of robust chromium stainless steel with a down-fired design, this heat exchanger resists combustion chamber damage, scale build-up and magnetite formation - prolonging its lifetime and reducing maintenance
• The dimpled fire tubes extract more heat while remaining compact, without the need for inserts that degrade over time
• The stainless steel Elite fire tube ultra offers high-efficiency, low pressure drop and performance you can depend on
• These models include an outdoor sensor that when used provides an AFUE rating of up to 96%, ensuring savings on your monthly energy bills
• The 10:1 turndown ratio limits short cycling for more efficient energy consumption
• The Elite fire tube ultra also comes equipped with a built-in highly efficient ECM pump
• The highly efficient Elite fire tube ultra comes equipped with HTP link technology, a Wi-Fi solution that enables remote monitoring of the appliance and system
• Monitor your boiler on the go or allow qualified personnel to be notified when faults or other key activities occur in the boiler, giving you peace of mind wherever you are
• When you are on location, the simple to use, high resolution touchscreen provides a clear visual of system operation, allowing easy monitoring and troubleshooting if necessary
