Ice-O-Matic® GEM0956A

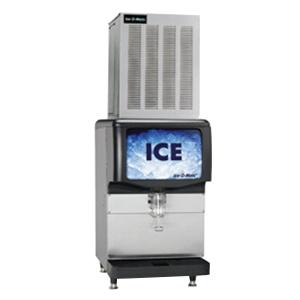

Ice-O-Matic® GEM0956A Nugget Ice Maker, 21 in W, 27 in H
Brand: Ice-O-Matic®
Item No: GEM0956A
Sign In for Availability
Description
Ice-O-Matic® Nugget Ice Maker, 208 to 230 V, 11.8 A, 60 Hz, 1 ph Phase, 5600 Btu/hr, Energy Consumption: 4.06 kW-hr, 15 A Fuse, Water Pressure: 20 to 120 psig, Water Consumption: 12 gal, 1053 lb Ice Yield, Nugget Ice, 40 to 100 deg F, 50 to 100 deg F, Stainless Steel, 21 in Width, 27 in Height
Features
- Load monitoring system continuously checks workload on gearbox, shutting down system before a problem develops and preventing costly repair
- Water sensor eliminates low or no water failures and can not be affected by adverse water conditions
- Industrial-grade dual-row roller bearings are located outside the ice-making zone for corrosion-resistance and longer-lasting performance
- Heavy-duty gearbox provides years of trouble-free service
- Front and rear air exchanges for side-by-side machine operation
- 3/8 in FPT ice maker potable water in
- 3/4 in FPT ice maker water out
- Electrical inlet
- Decreased water and power usage compared to cube ice makers, soft, chewable nugget ice crystals
- Cools beverages faster and longer while maintaining flavors better
- GEM Series pearl ice machines feature the benefits of decreased water and power usage compared to cube ice makers
Specifications
|
Amperage Rating |
11.8 A |
|
BTU Rating |
5600 Btu/hr |
|
Energy Consumption |
4.06 kW-hr |
|
Frequency Rating |
60 Hz |
|
Fuse Amperage |
15 A |
|
Height |
27 in |
|
Ice Type |
Nugget |
|
Ice Yield |
1053 lb |
|
Material |
Stainless Steel |
|
Phase |
1 ph |
|
Temperature Rating |
40 to 100 deg F, 50 to 100 deg F |
|
Voltage Rating |
208 to 230 V |
|
Water Consumption |
12 gal |
|
Water Pressure |
20 to 120 psig |
|
Width |
21 in |
