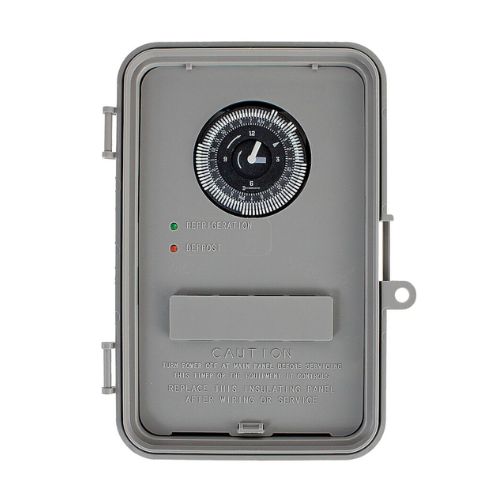

Intermatic® DTAV40
Intermatic® Grasslin DTAV40 Defrost Timer, 120 to 240 VAC, 2 hp, Configuration: 1NC SPST SPDT
Brand: Intermatic®
Item No: DTAV40
Sign In for Availability
Description
Intermatic® Grasslin Defrost Timer, 120 to 240 VAC, 60 Hz, 1NC SPST SPDT Configuration, Switch Rating: 15 A, Screw Box Lug Terminal Connection Type, NEMA 3R, 2 hp, 23 hr 45 min, -40 to 104 deg F, 8.795 in H x 6.631 in W x 2.935 in D, Additional Information: 0 to 95% Non-Condensing Relative Humidity
Features
- Replaces over 40 competitive models
- Mounts in existing enclosures, no tools required
- Moisture-resistant conformal coated board
- LED indicators for defrost and refrigeration cycles
- Defrost cycles are programmed independently
- Real time clock face for quick, easy and accurate setting
- Minimum on/off times of 15 min
- 23 hr 45 min maximum on/off times
- #8 AWG wire
- Electrical life - 50,000 operations at full load
Specifications
|
Additional Information |
0 to 95% Non-Condensing Relative Humidity |
|
Configuration |
1NC SPST SPDT |
|
Connection Type |
Screw Box Lug Terminal |
|
Dimensions |
8.795 in H x 6.631 in W x 2.935 in D |
|
Enclosure Type |
NEMA 3R |
|
Frequency Rating |
60 Hz |
|
Power Rating |
2 hp |
|
Switch Rating |
15 A |
|
Temperature Rating |
-40 to 104 deg F |
|
Timing Range |
23 hr 45 min |
|
Voltage Rating |
120 to 240 VAC |
