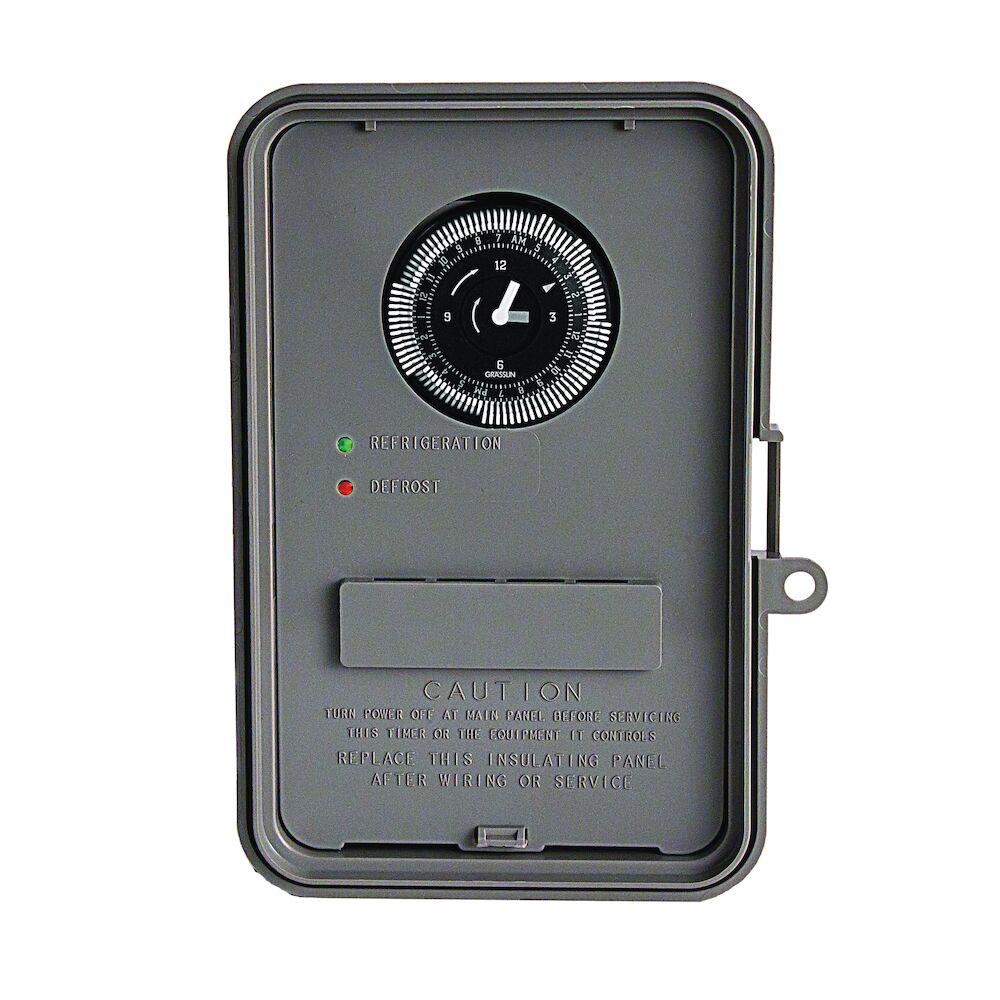

Intermatic® DTAV40Q

Description

The DTAV40 Series auto voltage defrost timer is applicable to air defrost (compressor shutdown) and electric or hot gas defrost systems where the defrost cycle is terminated by the timer. If the coil is frost-free, the timer can also be terminated by temperature or pressure switches before the programmed defrost termination time has been reached. The time termination functions as a fail-safe and terminates the defrost cycle if the temperature or pressure switch fails to do so.

Intermatic® Electromechanical Defrost Timer, 120/240 VAC, 40 A, 50/60 Hz, Configuration: SPDT, SPST-1NC, Screw Box Lug Terminal Connection, NEMA 3R Enclosure, Timing Range: 15 to 45 min, 23 hr, Contact Rating: 40 A at 120 VAC 50 Hz, 40 A at 120 VAC 60 Hz, 40 A at 208 VAC 50 Hz, 40 A at 208 VAC 60 Hz, 40 A at 240 VAC 50 Hz, 40 A at 240 VAC 60 Hz, 8 AWG, Lithium-Ion Battery, Bracket Mount

Features

• Adaptive defrost upgradeable (DTAV40, DTAV40M only)
• DTAV40 Series replaces over 40 competitive models
• Autovoltage automatically adjusts between 120 and 240 VAC
• Q model features self-recharging battery backup with 72 hr carry-over
• Can mount in an existing enclosure - no tools required for installation
• Moisture-resistant conformal-coated board
• LED indicators for defrost and refrigeration cycles
• Defrost cycles are programmed independently
• Real-time clock face for quick, easy and accurate setting
