JB Industries 110-DC

Description

JB machines all of the brass fittings at the factory in Aurora, Illinois using the highest level of brass, consisting of 65% copper and 35% zinc. This gives our brass fittings and access valves high-tensile strength while resisting corrosion. Many import fittings use lower quality brass with lower copper content and higher failure rates. Our brass fittings may be used with copper, brass, aluminum, steel and plastic tube provided an acceptable flare could be generated with the material. Vacuum pressures of 5000 lb/sq-in can be handled depending on the size, material and conditions. Using a 4:1 safety factor, the following general rule is used 3000 lb/sq-in to 1/4 in, 2000 lb/sq-in to 1/2 in and 1500 lb/sq-in to 1 in. Long nuts are recommended when vibration is a factor. Tubing should be double flared in extreme applications to minimize flare thinning on over-tightening. Our brass fittings general comply with SAE, ASA, ASME and MS standards. However, when design make dimensions critical. Heavy-duty ACR tube fittings generally conform to SAE, ASA and ARI standards for marine, hydraulic and refrigeration service. Long dry Seal® pipe threads minimize leakage and provide more clearance for tightening flare nuts. Shapes, elbows, tees and more. Are made from forged brass to maximize strength and eliminate cracks. Tube size listed are outside diameter. To determine nominal size, subtract 1/8 in. Pipe sizes listed are standard J513 whenever possible.

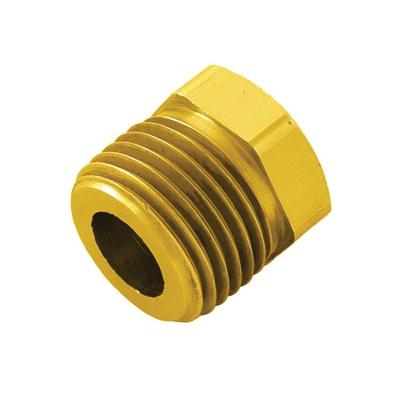

JB Industries Pipe Bushing, Bushing Fitting, 1/2 in Connection Size 1, 3/8 in Connection Size 2, Brass, Material Construction: Brass, 2000 psi

Features

• Good vibration resistance
• Low cost
• Easy assembly
• Wide selection

Specifications

Documentation
