JB Industries A31729

Description

JB machines all of the access valves at the factory in Aurora, Illinois using the highest level of brass consisting of 65% copper and 35% zinc. This gives our brass fittings and access valves high-tensile strength while resisting corrosion. Many import fittings use lower quality brass with lower copper content, resulting in higher failure rates. JB machines all of our valves to the strict guidelines of the ARI to ensure proper sealing of the valve and core surfaces.

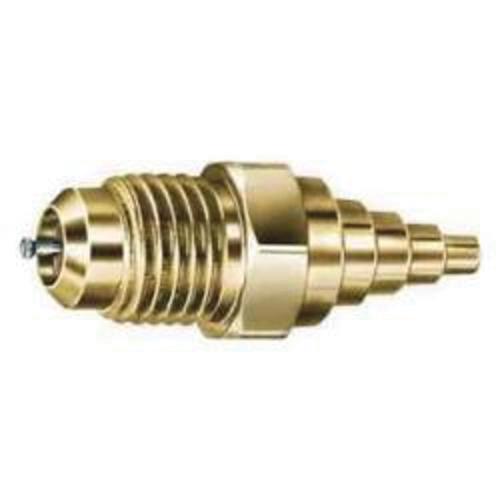

JB Industries Access Valve, 3/16-1/2 in Nominal, Access x ODF Connection, Brass Body, -40 to 250 deg F, Domestic/Import: Domestic

Features

• Generous counter bore allows removal of core if flare becomes damaged
• All tees and crosses are tapped to receive an access core in all 1/4 in SAE flare ends
• All pipe connections have internal braze cups for dip tube applications
• Valve core is stainless steel and brass for use with all refrigerants including R-410A
• Resistant to oils, alkylites and diluted mineral acids
• 3/16, 1/4, 5/16, 1/2 in OD flare steps
• Cap and valve core
