JB Industries A32906

Description

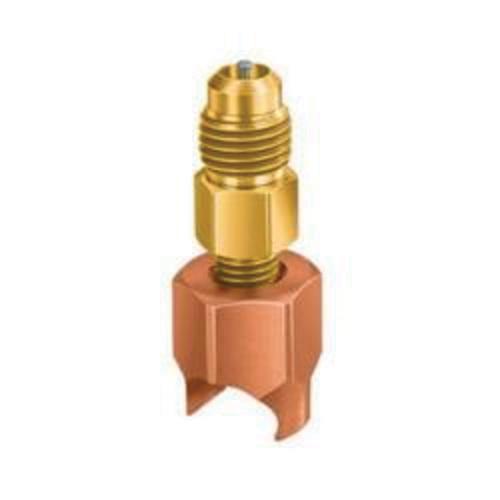

The A32900 Series of saddles offer the best protection from leaks. Once brazed on, you can check for leaks before piercing the tube. The steel pin is inserted and the cap is tightened down to pierce the tube. Body sizes are contoured to match specific tube sizes. The braze/tapper has a hardened steel piercing needle and is furnished with a cap.

JB Industries Saddle Braze, A32900 Series, 3/8 in Nominal, Saddle x Access Connection, 800 psi, Copper Body, -40 to 250 deg F, Domestic/Import: Domestic

Features

• Generous counter bore allows removal of core if flare becomes damaged
• All tees and crosses are tapped to receive an access core in all 1/4 in SAE flare ends
• All pipe connections have internal braze cups for dip tube applications
• Valve core is stainless steel and brass for use with all refrigerants including R-410A
• Resistant to oils, alkylites and diluted mineral acids
• Core pre-torqued to ARI specifications torque flare nut to 8-10 ft-lb
• Braze/tapper has a hardened steel piercing needle and is furnished with a cap
• All valves are equipped with cap and one valve core (braze-type, loosely assembled)
