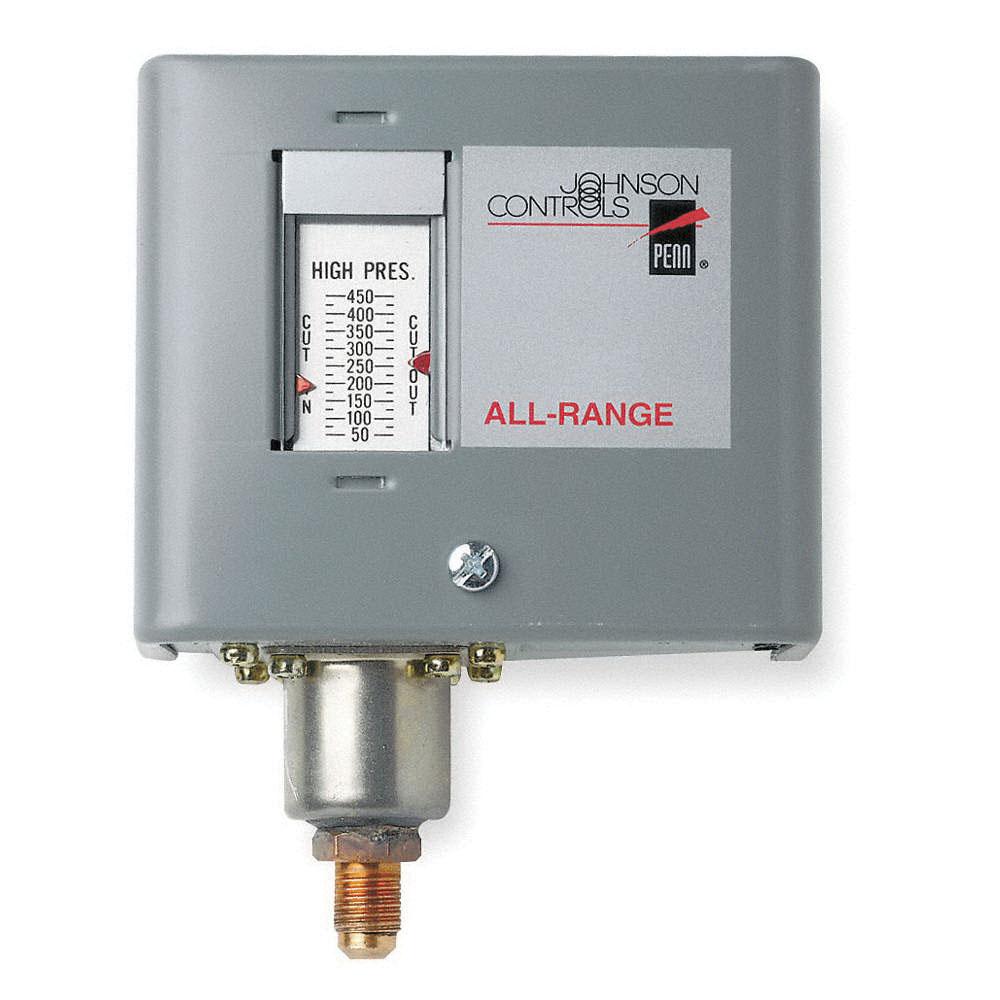

Johnson Controls P170DA-1C

Description

Johnson Controls Penn Pressure Control, Series: P170, 120/208/240 VAC, 1/4 in Male SAE Connection, SPST Contact Configuration, 50 to 500 psi, 2 hp at 120 VAC, 3 hp at 208/240 VAC, 24 A Full Load at 120 VAC, 18.7 A Full Load at 208 VAC, 17 A Full Load at 240 VAC, 144 A Locked Rotor at 120 VAC, 112.2 A Locked Rotor at 208 VAC, 102 A Locked Rotor at 240 VAC, 22 A Non-Inductive at 120 VAC, 22 A Non-Inductive at 208/240 VAC, 125 VA Pilot Duty at 120 to 600 VAC Contact Rating

Features

• SPST opens on high pressure action
• 250 lb/sq-in (open), 60 lb/sq-in (differential) pressure
• Manual reset
• All-steel case and cover provides long-lasting, rugged protection for internal components
• Sight set calibrated pressure adjustment displays a visible pressure scale, fully adjustable through the range without removing the cover (on NEMA 1 enclosure models)
• Manual reset lockout option provides trip free lockout that cannot be overridden or reset until pressure returns to specified level
• NEMA 1 enclosure
• Includes universal-mounting bracket
