Johnson Controls P170DA-400C

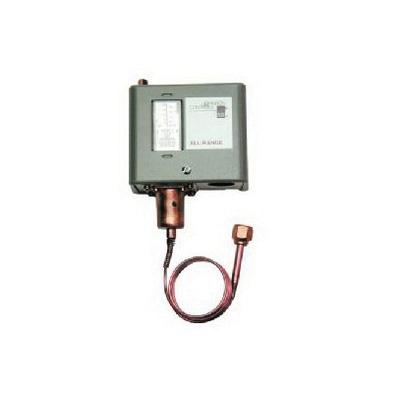

Johnson Controls Penn P170 P170DA-400C High Pressure Control, 1/4 in Male SAE Connection
Brand: Johnson Controls
Item No: P170DA-400C
Sign In for Availability
Description
Johnson Controls Penn High Pressure Control, Series: P170, 1/4 in Male SAE Connection, Switching Action: SPST Open High/Close Low, 200 - 610 lbf/sq-in, 690 lbf/sq-in Maximum Working Pressure, 24 A Full Load, 144 A Locked Rotor, 22 A Non-Inductive at 120 VAC and 2 hp, 18.7 A Full Load, 112.2 A Locked Rotor, 22 A Non-Inductive at 208 VAC and 3 hp, 17 A Full Load, 102 A Locked Rotor, 22 A Non-Inductive at 240 VAC and 3 hp, 24 A Full Load, 144 A Locked Rotor at 208/240 VAC Hermetic Compressor, 125 V-A at 120 - 600 VAC, 57.5 V-A at 120 - 300 VDC Pilot Duty Contact, 36 in Capillary Length, -40 to 140 deg F Ambient
Features
- All steel case and cover - built to provide long-lasting, rugged protection for internal components
- Manual reset lockout option provides trip free lockout that cannot be overridden or reset until pressure returns to specified level
- Specifically designed for use with high pressure HFC refrigerants
Specifications
|
Capillary Length |
36 in |
|
Connection Type |
1/4 in Male SAE |
|
Contact Rating |
24 A Full Load, 144 A Locked Rotor, 22 A Non-Inductive at 120 VAC and 2 hp, 18.7 A Full Load, 112.2 A Locked Rotor, 22 A Non-Inductive at 208 VAC and 3 hp, 17 A Full Load, 102 A Locked Rotor, 22 A Non-Inductive at 240 VAC and 3 hp, 24 A Full Load, 144 A Locked Rotor at 208/240 VAC Hermetic Compressor, 125 V-A at 120 - 600 VAC, 57.5 V-A at 120 - 300 VDC Pilot Duty |
|
Pressure Rating |
200 - 610 lbf/sq-in, 690 lbf/sq-in Maximum Working |
|
Series |
P170 |
|
Switching Action |
SPST Open High/Close Low |
|
Temperature Rating |
-40 to 140 deg F Ambient |
