Johnson Controls P70AA-2C

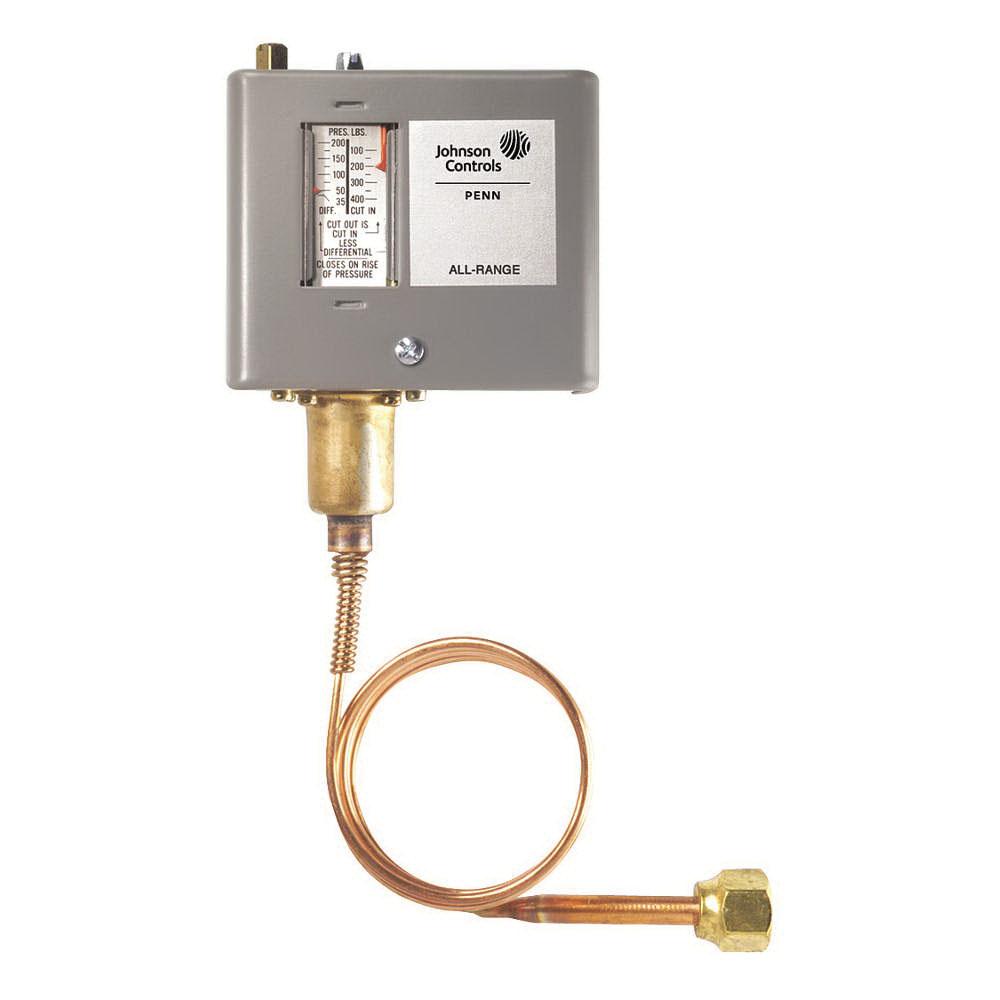

Johnson Controls Penn P70 P70AA-2C High Pressure Controller, 120 - 240 VAC, 1/4 in Nominal, Flare Nut Connection, Steel
Brand: Johnson Controls
Item No: P70AA-2C
Sign In for Availability
Description
Johnson Controls Penn High Pressure Controller, Series: P70, 120 - 240 VAC, 1 -Phase, 1/4 in Nominal, Flare Nut Connection, Switching Action: SPST Open Low, 0 - 150 lb/sq-in, 10 - 70 lb/sq-in Maximum Differential, 325 lbf/sq-in Maximum Working Pressure, Universal Mounting Bracket Mounting, Steel, 36 in Capillary Length, 4 in W x 3-1/4 in H x 2-1/16 in D
Features
- All-steel case and cover provides long-lasting, rugged protection for internal components
- Sight-set calibrated pressure adjustment - displays a visible pressure scale, fully adjustable through the range without removing the cover
- NEMA 1 enclosure, no adjustment knob
- For non-corrosive refrigerants
Specifications
|
Capillary Length |
36 in |
|
Connection Type |
Flare Nut |
|
Dimensions |
4 in W x 3-1/4 in H x 2-1/16 in D |
|
Material |
Steel |
|
Mounting Type |
Universal Mounting Bracket |
|
Nominal Size |
1/4 in |
|
Phase |
1 |
|
Pressure Rating |
0 - 150 lb/sq-in, 10 - 70 lb/sq-in Maximum Differential, 325 lbf/sq-in Maximum Working |
|
Series |
P70 |
|
Switching Action |
SPST Open Low |
|
Voltage Rating |
120 - 240 VAC |
