K-Flex 6RY148158WTS

Description

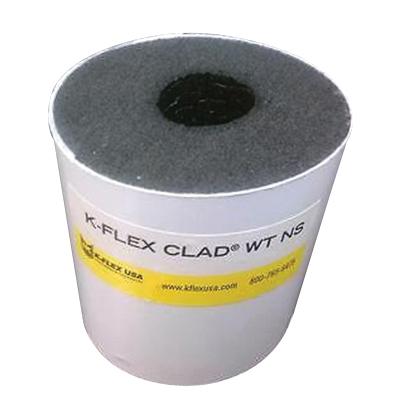

K-Flex Clad WT NS tube is comprised of flexible, closed cell elastomeric tube insulation (black) fully adhered in a controlled factory environment to a white finish, PVC backed jacketing that protects the insulation against damage from UV rays, mechanical abuse, moisture (second moisture vapor barrier) and chemicals. The product is designed for indoor or outdoor applications where piping systems are exposed (visually or to elements) and cleanability, appearance, and durability are important. By eliminating a field applied longitudinal seam, it provides a superior moisture vapor barrier and more reliable performance.

K-Flex CLAD® Pipe Insulation, 1-1/4 x 1-5/8 x 1-1/2 in Nominal, 1-5/8 in Inside Diameter, 4-5/8 in Outside Diameter, 1-1/2 in Wall Thickness, -40 to 220 deg F, IPS x CTS x CTS Connection, NBR/PVC, White, 6 ft Length, Domestic/Import: Domestic

Features

• K-Flex Clad WT's low permeance jacket provides a secondary moisture vapor and gas barrier to the inherently moisture resistant closed cell foam core, which is considered a class one vapor retarder per ASHRAE
• The installed system is 100% sealable with moisture-tight seams, has a high emissivity value and is resistant to puncture
• Factory jacketed tubes have a unique overlap closure system to eliminate moisture penetration through seams

Specifications

Documentation
