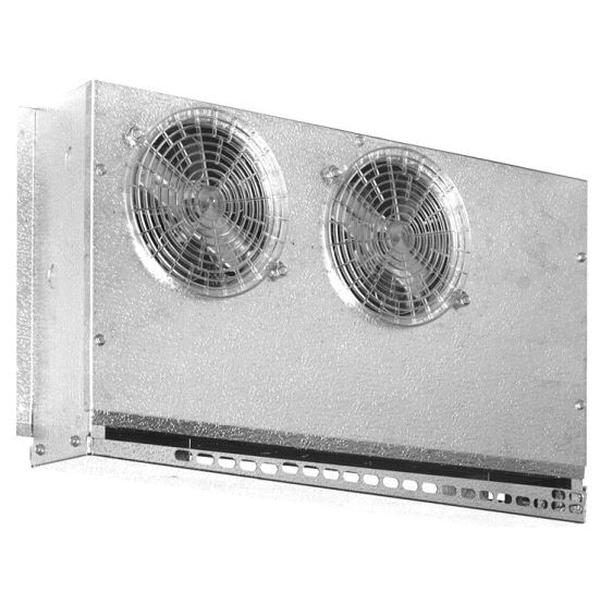

Larkin BBM11AG

Description

Models BB are compact, wall-mounted units whose low height makes them ideal for under counter reach-in or drawer-type fixtures. The unit draws air in at the bottom and discharges out the front. An optional air deflector is included and can be mounted over the center of the fan to direct air up and out. The deflector can be field-formed to direct the air where needed, usually onto drop-in trays of condiments in salad bar or sandwich preparation fixtures. An S-type mounting angle is included to position the unit 3/4 in off the wall which gives optimum air circulation and performance. The BBM (medium temperature) model is designed for 35 deg to 40 deg F fixture temperature with off-cycle defrost. The unit is designed to operate at 10 deg to 17 deg TD and 16 hr per day compressor run time.

Larkin Back Bar Reach-In Unit Cooler, Series: BBM Series, Model: BBM11, 115 V, 0.8 A, 1/150 hp HP Rating, 60 Hz, 1 ph, 1100 Btu/hr, 90 cfm CFM Rating, Sweat, 3/8 in, 1/2 in, 1 Number of Fans, Aluminum, Textured, 14 in H x 19-3/4 in L x 4-1/2 in D

Features

• Molded polycarbonate fan guards
• Coils have copper tubes with aluminum fins, mechanically bonded for efficient heat transfer, the coils are dehydrated and sealed
• Textured aluminum cabinet
• Knockouts are conveniently located for refrigerant lines
• Screws are hardened, stainless steel
• Expansion valve can be mounted inside the cabinet and connections are sweat-type
• Motors are thermally protected and permanently lubricated
• Sweat inlet connection to reduce leaks
• Vintage
