Legend Valve 830-201

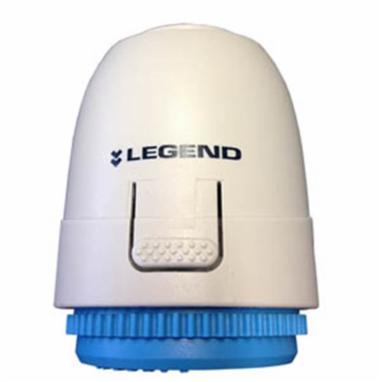

Legend Valve 830-201 4-Wire Manifold Circuit Actuator With End Switch, 24 V, 32 to 140 deg F, Plastic, 0.16 in Stroke
Brand: Legend Valve
Item No: 830-201
Sign In for Availability
Description
Legend Valve 4-Wire Manifold Circuit Actuator, Series: 8330 Series, 24 V, VA Rating: 1 VA, 1 W, NO Contact Configuration, 0.16 in Stroke, 36 in Lead Length, 3.5 min Timing Range, Plastic, 32 to 140 deg F, 2.26 in H x 1.74 in W x 2.2 in D, Additional Information: 0 to 212 deg F Temperature Rating, <300 mA Inrush Current, 24 V 0.5 mA Maximum End Switch, Yellow Wire 24 V Power, Red Wire End Switch, Plastic Valve Release, Cable Connection, 4-Wire 72 in Useful Length Supply Cable, For Use With All Legend Stainless Steel Manifolds
Features
- Condition in absence of voltage normally closed NC
- First-open function
- Valve working stroke 0.16 in (4mm)
- Class II dust protection
- Mountable in any orientation
- Valve position indicator on top of valve casing
- Double insulated electrical enclosure
- Reliable thermo-electric operation
- Noiseless and maintenance-free
Specifications
|
Additional Information |
0 to 212 deg F Temperature Rating, <300 mA Inrush Current, 24 V 0.5 mA Maximum End Switch, Yellow Wire 24 V Power, Red Wire End Switch, Plastic Valve Release, Cable Connection, 4-Wire 72 in Useful Length Supply Cable, For Use With All Legend Stainless Steel Manifolds |
|
Contact Configuration |
NO |
|
Dimensions |
2.26 in H x 1.74 in W x 2.2 in D |
|
Lead Length |
36 in |
|
Material |
Plastic |
|
Power Rating |
1 W |
|
Series |
8330 Series |
|
Stroke |
0.16 in |
|
Temperature Rating |
32 to 140 deg F |
|
Timing Range |
3.5 min |
|
VA Rating |
1 VA |
|
Voltage Rating |
24 V |
