LG PBACNA000

LG PBACNA000 AC Gateway, 24 V

Brand: LG

Item No: PBACNA000

Sign In for Availability
loading

Description

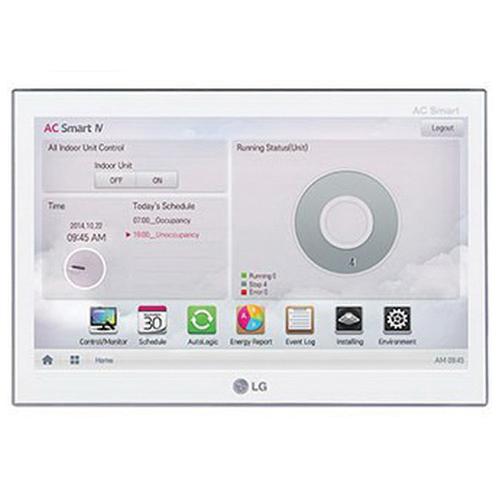

The LG innovative AC smart bacnet gateway communicates with LG indoor units and provides open protocol communication between multi V air conditioning products and various brands of building automation systems. The LG AC smart IV bacnet gateway also offers advance features in addition to basic system control and monitoring. The controller outfitted with a clear, 10.2 in LCD touch screen display with user-controlled web access, making monitoring HVAC systems simple and convenient.

LG AC Gateway, 24 V, 60 Hz, 32 to 104 deg F, 6-5/8 in H x 10 in W x 1-3/16 in D

Features

  • 10.2 in WSVGA TFT LCD touch screen
  • Indoor unit control/monitoring by groups/indoor units
  • Web access with graphical user access control
  • Operation and event history log
  • Forced-off digital input
  • One-digital input and 2-digital outputs for device interlocking
  • Multiple language selections
  • Operation-on/off
  • Mode control (heat, cool, dry, auto, fan)
  • Setpoint
  • Fan speed, auto/low/med/high
  • Louver swing
  • Two conductor, stranded, shielded copper cable/PVC or vinyl jacket

Specifications

Dimensions

6-5/8 in H x 10 in W x 1-3/16 in D

Frequency Rating

60 Hz

Temperature Rating

32 to 104 deg F

Voltage Rating

24 V

Documentation

Specification Sheet

https://assets.unilogcorp.com/267/ITEM/DOC/LG_PBACNA000_Specification_Sheet.pdf
