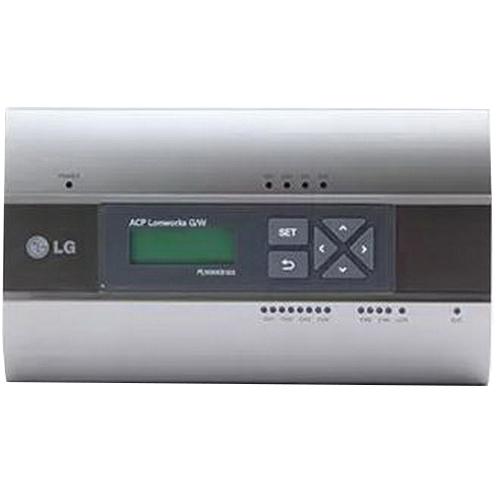

LG PLNWKB100
LG PLNWKB100 Gateway, 24 V
Brand: LG
Item No: PLNWKB100
Sign In for Availability
Description
LG Gateway, 24 V, 4 to 140 deg F, 6-3/16 in H x 10-11/16 in W x 2-5/8 in D
Features
- Integrates multi V and select mini and multi-split systems with third party building management systems
- 20 x 4 character LCD
- Indoor unit control/monitoring by groups/indoor units
- Web access with user access control
- Operation and error history log
- Forced-off dedicated digital input (first of two digital inputs)
- One-digital input and 2-digital outputs for device interlocking
- Basic unit function-operation-on/off, mode-auto/cool/dry/heat/fan only, set point, fan speed-auto/low/med/high/power, louver swing
- Two set point auto-changeover
- Two set point setback
- 200 programmable schedule events with control of set point, on/off, mode, fan speed, controller lock and louver swing
- Temperature setpoint range limit
Specifications
|
Dimensions |
6-3/16 in H x 10-11/16 in W x 2-5/8 in D |
|
Temperature Rating |
4 to 140 deg F |
|
Voltage Rating |
24 V |
