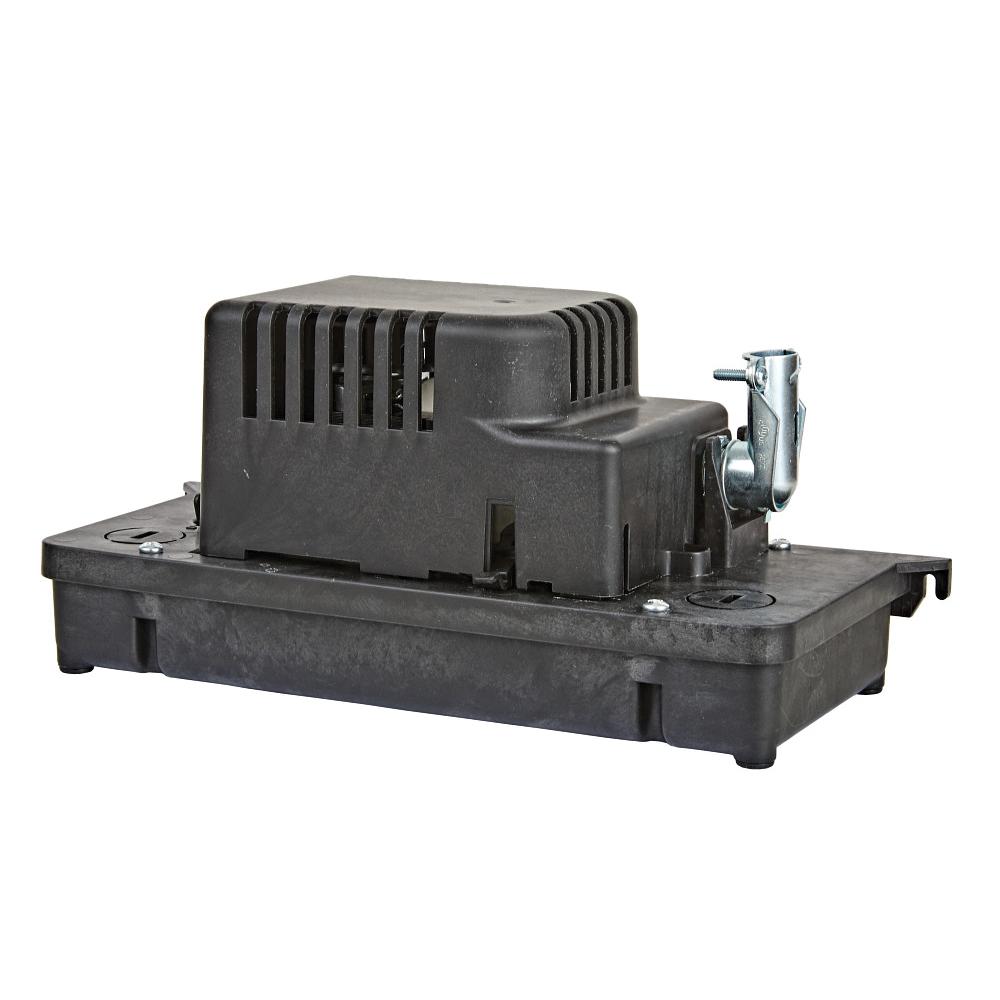

Little GIANT® VCC-20-P-115V
Little GIANT® Plenum Series VCCA-20-P (115V) VCC-20-P-115V Low Profile Condensate Pump, 115 VAC, 1.5 A, 1/30 hp
Brand: Little GIANT®
Item No: VCC-20-P-115V
Sign In for Availability
Description
The VCCA-20-P is Little Giant's low-profile condensate pump specifically designed for plenum applications with restricted space where gravity drainage is not possible or practical. It is ideal for the automatic collection and removal of condensate from air conditioning, refrigeration, and dehumidification equipment. Suitable for use in air handling spaces.
Little GIANT® Low Profile Condensate Pump, Plenum Series, Model: VCCA-20-P (115V), 115 VAC, 1.5 A, 93 W Power, 1/30 hp, 60 Hz, 1.33 gpm Flow Rate, Discharge Size: 0.38 in, Impeller Material: Glass Filled Polypropylene, Shut-Off Head: 20 ft, 6 ft Cord, 8.6 psi Pressure, 140 deg F Fluid, 11.99 in L x 5.03 in W x 5.24 in H, 11.99 in L Pump
Features
- Stainless steel motor shaft
- Maximizes HVAC system performance and safety
- Rated for water temperatures up to 140 deg F
Specifications
|
Additional Information |
11.99 in L Pump |
|
Amperage Rating |
1.5 A |
|
Cord Size |
6 ft |
|
Dimensions |
11.99 in L x 5.03 in W x 5.24 in H |
|
Discharge Size |
0.38 in |
|
Flow Rate |
1.33 gpm |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/30 hp |
|
Impeller Material |
Glass Filled Polypropylene |
|
Model |
VCCA-20-P (115V) |
|
Power Rating |
93 W |
|
Pressure Rating |
8.6 psi |
|
Series |
Plenum Series |
|
Shut-Off Head |
20 ft |
|
Temperature Rating |
140 deg F Fluid |
|
Voltage Rating |
115 VAC |
