Mars® 00221

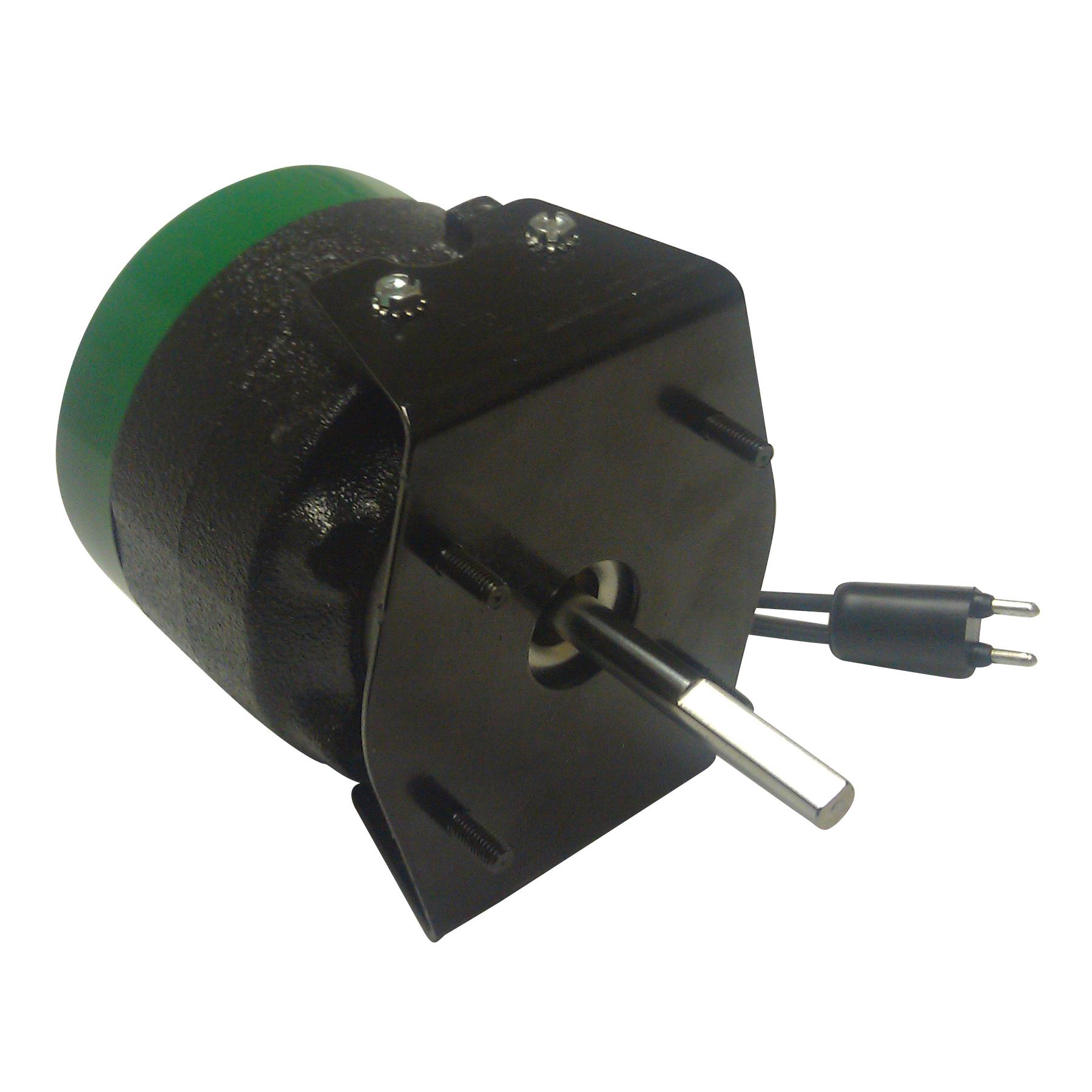

Mars® 00221 ECM Motor, 1/15 hp, 230 V, 50/60 Hz, 1 ph, 3.3 in Frame, 1550 rpm Speed
Brand: Mars®
Item No: 00221
Sign In for Availability
Description
Mars® ECM Motor, 1/15 hp, 230 V, 0.77 A, 50/60 Hz, 1 ph, 1550 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, Frame: 3.3 in, 0.25 in Dia x 2.675 in L Shaft, 40 deg C, Class A, 5.383 in OAD, Clockwise Rotation, Thermal Protection, 22.5 in Leads with EMF/Lyall Plug, (4) 10-32 Hex Flange Nuts Are Supplied with Each Motor
Features
- 3.3 interchangeability
- Shaft down and horizontal mounting
- Cast iron unit bearing construction
- Front-mount studs
- Shaft end rotation
Specifications
|
Additional Information |
Clockwise Rotation, Thermal Protection, 22.5 in Leads with EMF/Lyall Plug, (4) 10-32 Hex Flange Nuts Are Supplied with Each Motor |
|
Amperage Rating |
0.77 A |
|
Enclosure Type |
Totally Enclosed Air Over |
|
Frame |
3.3 in |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
1/15 hp |
|
Insulation Class |
Class A |
|
Number of Speeds |
1 |
|
Overall Depth |
5.383 in |
|
Phase |
1 ph |
|
Shaft Size |
0.25 in Dia x 2.675 in L |
|
Speed Rating |
1550 rpm |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
230 V |
