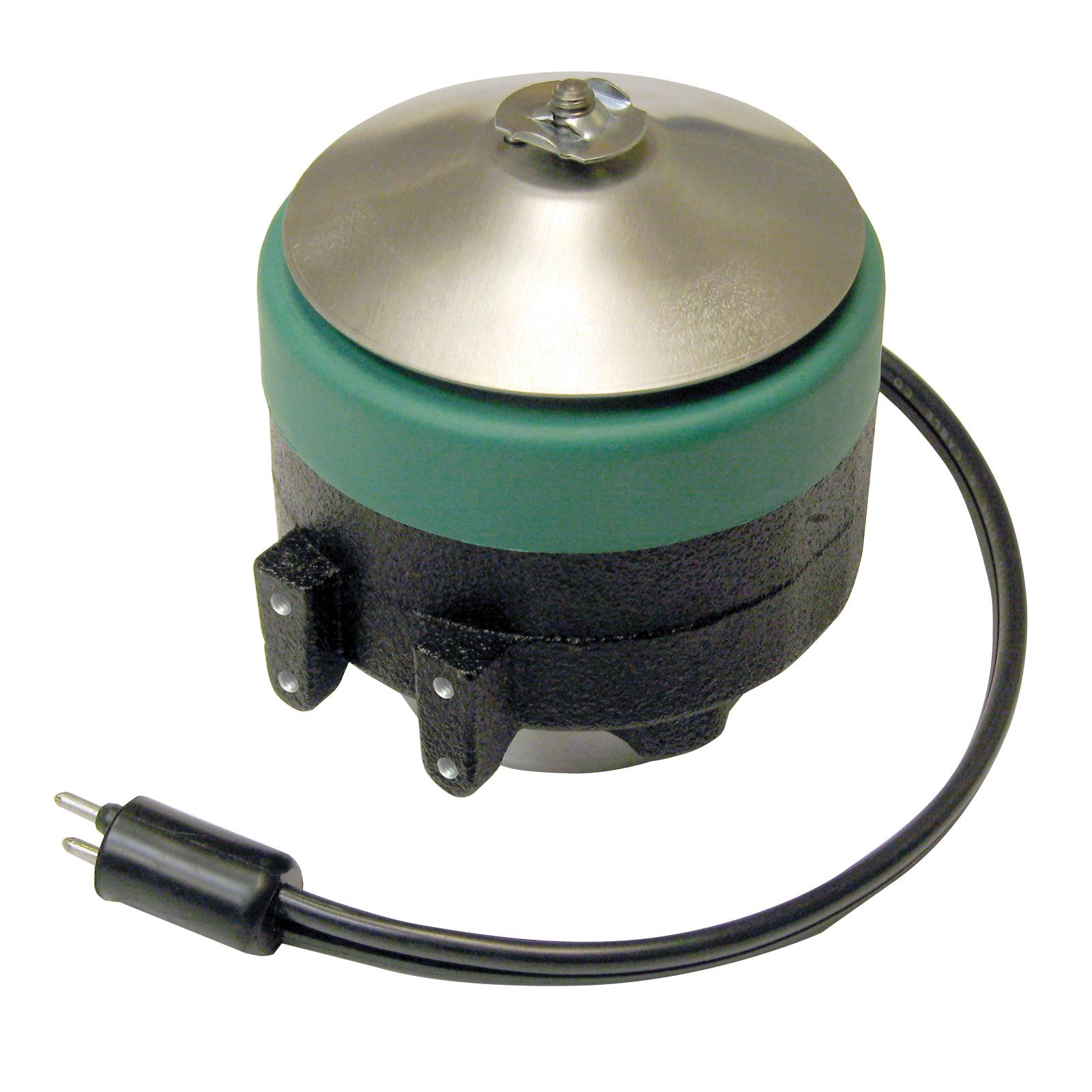

Mars® 00621

Description

The Unitronix double-duty is an electronically commutated motor that brings outstanding energy savings to the refrigeration market in the form of a direct drop-in replacement for practically all unit bearing motors. No additional labor or sheet metal work is required to replace an existing shaded pole unit bearing motor with a Unitronix double-duty. Heat in a refrigerated space has always been a necessary evil in the food marketing industry. Lights, motors and defrost heating elements are the culprits. But, heat shortens food storage life and adds to the load placed on the refrigeration system. The new Unitronix double-duty dramatically reduces (by as much as 75%) the waste heat generated by refrigerated case evaporator motors.

Mars® ECM Motor, 6 to 12 W, 115 V, 0.2 to 0.3 A, 60 Hz, 1 ph, 1550 rpm Speed, 1 Speed, Totally Enclosed Air Over Enclosure, Frame: 51, 0.25 in Dia x 0.425 in L Shaft, 40 deg C, Class A, 3.87 in OAW, 3.55 in OAD, Clockwise Rotation, Thermal Protection, 15 in Leads

Features

• Special wide temperature range lubrication system
• High capacity oil reservoir spiral grooved shaft for efficient distribution of oil to the bearing surface
• Water shield
