Mars® 05444

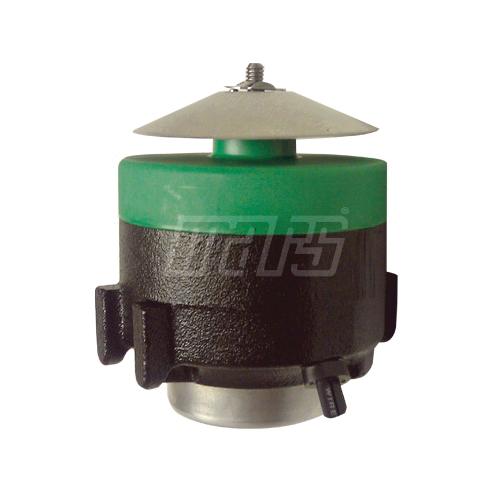

Mars® 05444 Motor, 115 VAC, 0.4 A, 1850 rpm Speed, 1 ph -Phase, 60 Hz, TEAO Motor Enclosure, NEMA 51 Frame
Brand: Mars®
Item No: 05444
Sign In for Availability
Description
EM&S manufactures an ECM unit bearing construction motor that can serve as a drop-in replacement for the obsolete GE 55/44 frame ECM 1650 or 1850 rev/min motor. This motor is available in a 9 W and a 16 W version. This promises substantial energy savings and potentially fast payback on-the cost of conversion.
Mars® Motor, 115 VAC, 0.4 A, 1850 rpm, 1 ph Phase, 60 Hz, TEAO Motor Enclosure, NEMA 51 Frame, 0.25 in Dia x 0.425 in L Shaft, Clockwise Rotation, 1 Speed, Unit Bearing, A Insulation Class, 40 deg C
Features
- Ultra high-efficiency
- Improved reliability
- Enhanced airflow performance
- Energy savings of 66% over a wide speed range
- Low operating temperature
- Lyall plug or EMF plug
- Replaces GE ECM 55/44 frame motors
- Totally enclosed air-over
- Cast-iron unit bearing
- 1/4-20 threaded shaft
- 12 in of lead wire
- Thermal overload protection
Specifications
|
Amperage Rating |
0.4 A |
|
Bearing Type |
Unit |
|
Frame Size |
NEMA 51 |
|
Frequency Rating |
60 Hz |
|
Insulation Class |
A |
|
Motor Enclosure Type |
TEAO |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Rotation Type |
Clockwise |
|
Shaft Size |
0.25 in Dia x 0.425 in L |
|
Speed Rating |
1850 rpm |
|
Temperature Rating |
40 deg C |
|
Voltage Rating |
115 VAC |
