Mars® 10853

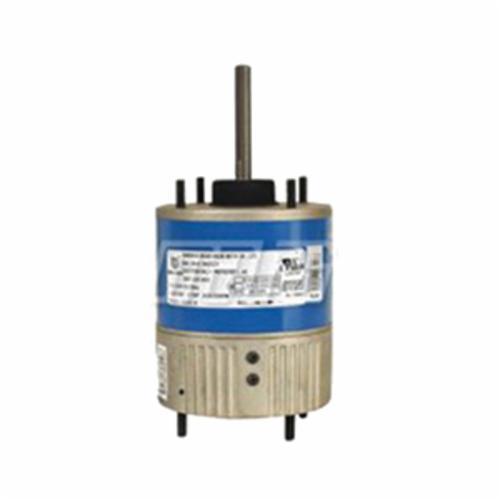

Mars® 10853 Evaporator Fan Motor, 115/230 VAC, 1/15 to 1/25 hp, 1550 rpm Speed, 1 ph -Phase, 50 Hz, 60 Hz
Brand: Mars®
Item No: 10853
Sign In for Availability
Description
Azure is an electronically controlled 3.3 in motor (ECM) that replaces all 1/15 - 1/25 hp, 115/230 V, and 1550/600 rev/min commercial refrigeration evaporator fan motors for walk-in cooler/freezer applications. For 1550 rev/min, this motor connects easily to the fan controller via a standard lyall plug. For 2-speed applications, the lyall plug can be removed and the motor can be wired directly to a separate 2-speed control module using the included second speed tap for 600 rev/min. Motor rotation is set using a simple jumper wire. Azure is rated for 115 or 230 V with nothing to set, plug it in to either voltage and it adapts to the correct voltage.
Mars® Evaporator Fan Motor, 115/230 VAC, 1/15 to 1/25 hp, 1550 rpm, 1 ph Phase, 50 Hz, 60 Hz, Open Motor Enclosure, 5/16 in Dia x 2-1/2 in L Shaft, Clockwise Lead End Rotation, 1 Speed, Ball Bearing, Stud Mounting, B Insulation Class, -40 to 131 deg F
Features
- Automatic thermal protection
Specifications
|
Bearing Type |
Ball |
|
Frequency Rating |
50 Hz, 60 Hz |
|
HP Rating |
1/15 to 1/25 hp |
|
Insulation Class |
B |
|
Motor Enclosure Type |
Open |
|
Mounting Type |
Stud |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Rotation Type |
Clockwise Lead End |
|
Shaft Size |
5/16 in Dia x 2-1/2 in L |
|
Speed Rating |
1550 rpm |
|
Temperature Rating |
-40 to 131 deg F |
|
Voltage Rating |
115/230 VAC |
