Mars® 12066

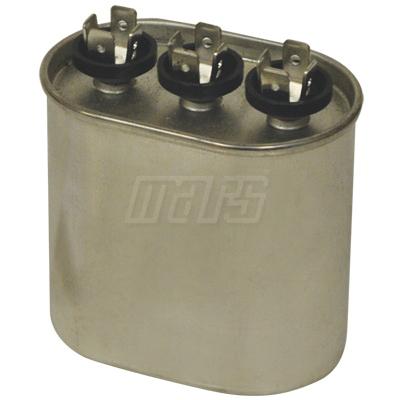

Mars® Blue Box 12066 Motor Run Capacitor, MFD Rating: 25+5 uF, 370 V, Oval, 5-1/4 in H, 2.806 in W
Brand: Mars®
Item No: 12066
Sign In for Availability
Description
Dual section run capacitors are used primarily to serve two microfarad applications. They can, however, by making various combinations of parallel connections, be used to obtain many other microfarad ratings.
Mars® Blue Box Motor Run Capacitor, 25+5 uF MFD Rating, 370 V, 50/60 Hz, Oval Shape, 4 Terminals, 60000 hr Average Life, 2-5/8 in Case Height, -40 to 70 deg C, Aluminum Case, 5-1/4 in Height, 2.806 in Width
Features
- Non-PCB capacitors, physical interrupter makes our capacitors safe
- Offers the widest selection of ratings in the industry
- OEM-grade
- C base
- Perfect for general replacements
Specifications
|
Average Life |
60000 hr |
|
Case Height |
2-5/8 in |
|
Case Material |
Aluminum |
|
Frequency Rating |
50/60 Hz |
|
Height |
5-1/4 in |
|
MFD Rating |
25+5 uF |
|
Number of Terminals |
4 |
|
Shape |
Oval |
|
Temperature Rating |
-40 to 70 deg C |
|
Voltage Rating |
370 V |
|
Width |
2.806 in |
