Mars® 12242

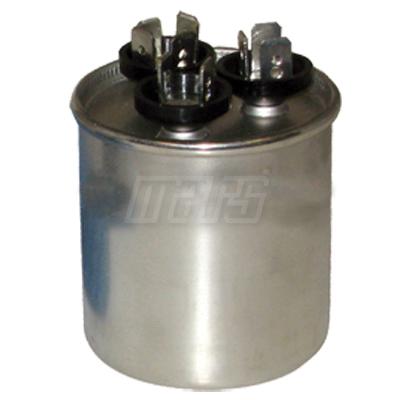

Mars® Blue Box 12242 Motor Run Capacitor, MFD Rating: 25+3 uF, 370 V, Round, 2 in Dia, 3-5/8 in H
Brand: Mars®
Item No: 12242
Sign In for Availability
Description
Mars® Blue Box Motor Run Capacitor, 25+3 uF MFD Rating, 370 V, 50/60 Hz, Round Shape, 9 Terminals, 60000 hr Average Life, 3-1/8 in Case Height, -40 to 70 deg C, Aluminum Case, 2 in Dia, 3-5/8 in Height
Features
- Non-PCB capacitors, physical interrupter makes our capacitors safe
- Offers the widest selection of ratings in the industry
- OEM-grade
- N base
- Perfect for general replacements
- Dual section run capacitors are used primarily to serve 2 uF applications
- They can, however, by making various combinations of parallel connections, be used to obtain many other microfarad ratings
Specifications
|
Average Life |
60000 hr |
|
Case Height |
3-1/8 in |
|
Case Material |
Aluminum |
|
Diameter |
2 in |
|
Frequency Rating |
50/60 Hz |
|
Height |
3-5/8 in |
|
MFD Rating |
25+3 uF |
|
Number of Terminals |
9 |
|
Shape |
Round |
|
Temperature Rating |
-40 to 70 deg C |
|
Voltage Rating |
370 V |
