Mars® 39010

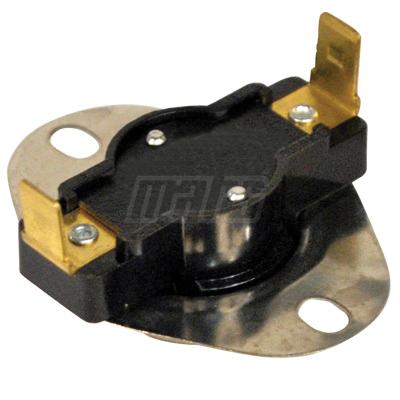

Mars® 390 39010 Fan Switch, 120/240/277 V, Switching Action: Close on Rise
Brand: Mars®
Item No: 39010
Sign In for Availability
Description
Mars® series 390 thermostats are designed for quick on-the-job replacements. One thermostat, when used in conjunction with only one listed, can solve almost any mounting problems you encounter. Our thermostats have been carefully selected to cover the widest temperature ranges with the fewest models.
Mars® Fan Switch, Series: 390, 120/240/277 V, 10 A at 120 V, 5 A at 240 V Full Load (Terminal 1 - 3), 25 A at 120/240/277 V Resistive (Terminal 1 - 3), Switching Action: Close on Rise, 130 deg F Open, 150 deg F Close, Pilot Duty: 125 V-A at 120/240/277 V
Features
- Each 3/4 in thermostat has an integral oval flange to match the most commonly used mounting option
- Widest range of replacements in the industry
Specifications
|
Amperage Rating |
10 A at 120 V, 5 A at 240 V Full Load (Terminal 1 - 3), 25 A at 120/240/277 V Resistive (Terminal 1 - 3) |
|
Pilot Duty Rating |
125 V-A at 120/240/277 V |
|
Series |
390 |
|
Switching Action |
Close on Rise |
|
Temperature Rating |
130 deg F Open, 150 deg F Close |
|
Voltage Rating |
120/240/277 V |
